Signal Waveform

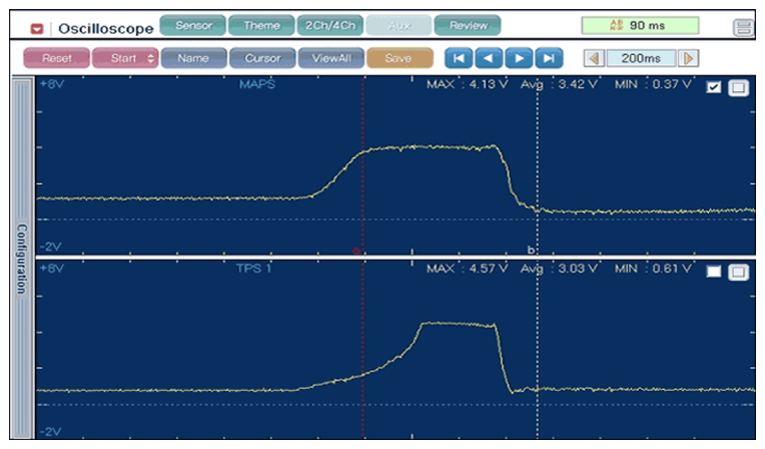

Fig 1: MAPS & TPS Signal Waveform

G06860579

Courtesy of HYUNDAI MOTOR CO.

Comparing MAPS and TPS, The signals of MAPS and TPS increases and decrease simultaneously.
