Engine Control System Diagnosis (3 Of 3)
>>
DTC P0685: PCM Power Relay Control Circuit Open
>>
General Information
>>
Diagnostic Circuit
Diagnostic Circuit

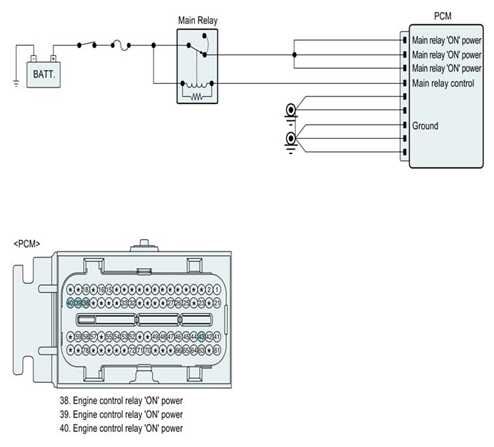

Fig 1: PCM/PCM Power Relay Control Circuit Open - Diagnostic Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
