Control Circuit Inspection

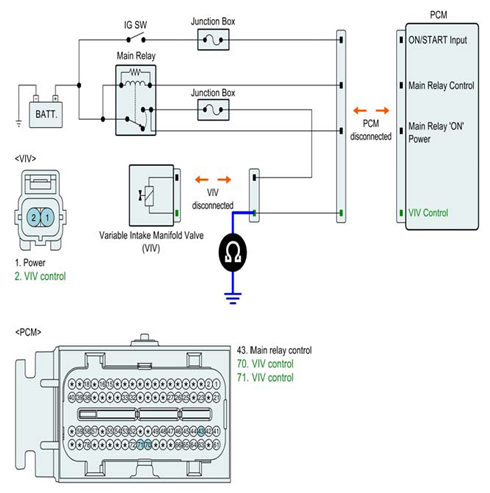

- Check short to ground in harness
- IG "OFF" and disconnect VIV connector and PCM connector.
- Measure resistance between control terminal of VIV harness connector and chassis ground.
- Specification: Infinite
- Is the measured voltage within specification?
YES
- Go to "Check open in harness" as follows.
NO
- Repair short to ground in harness, and Go to VERIFICATION OF VEHICLE REPAIR procedure.

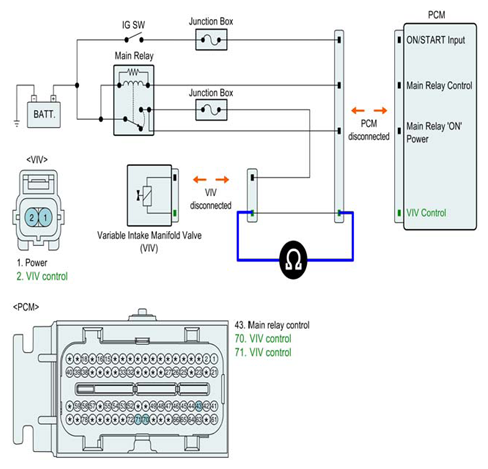

- Check open in harness
- IG "OFF" and disconnect VIV connector and PCM connector.
- Measure resistance between control terminal of VIV harness connector and VIV control terminal of PCM harness connector.
- Specification: Below 1 Ω
- Is the measured resistance within specification?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Repair open in harness, and go to VERIFICATION OF VEHICLE REPAIR procedure.
