Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least 3 minutes before beginning work.
  2. Remove the roof trim.

    (Refer to "ROOF TRIM REPLACEMENT ").

  3. Disconnect the curtain airbag harness connector (A).
    Fig 1: Curtain Airbag Harness Connector
    G09133782Courtesy of HYUNDAI MOTOR AMERICA
  4. After loosening the mounting bolts remove the curtain airbag.

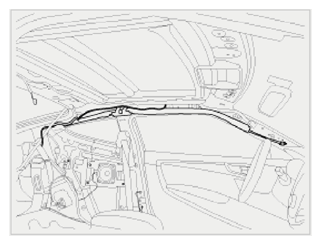

    Fig 2: Curtain Airbag
    G09133783Courtesy of HYUNDAI MOTOR AMERICA
