Circuit Diagram (1)

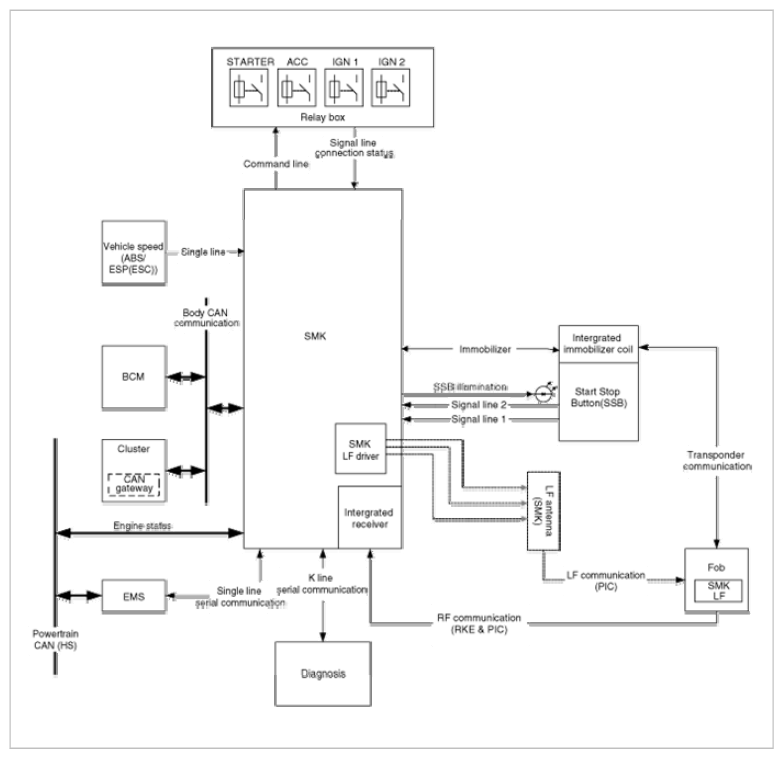

Fig 1: Button Engine Start System Schematic (1 Of 2)

G08811915

Courtesy of HYUNDAI MOTOR AMERICA
