Passenger power window switch

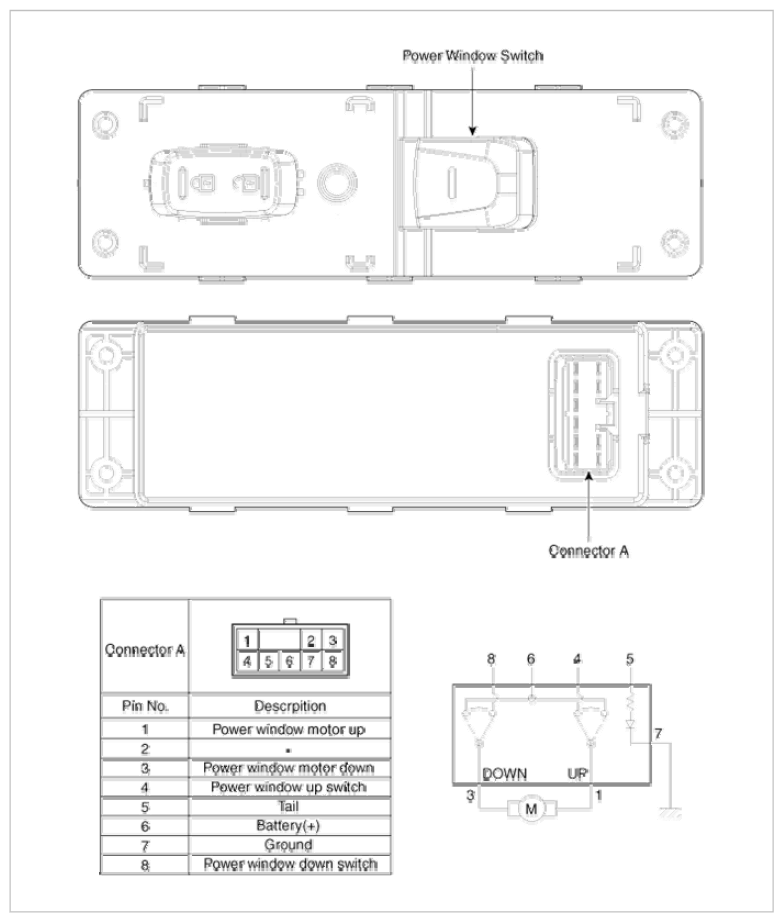

Fig 1: Passenger Power Window Switch Schematic

G08811708

Courtesy of HYUNDAI MOTOR AMERICA
