SRS Control Module Connector End View

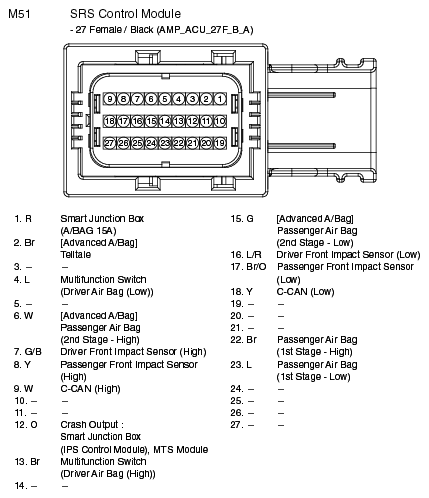

Fig 1: SRS Control Module Connector End View (M51)

G10776610

Courtesy of HYUNDAI MOTOR AMERICA
