PODS Re-Zero Procedure

You should perform PODS Re-zero procedure after service or replacement about all part of the passenger seat.

1. Ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF", select Airbag system and "PODS Reset" mode.

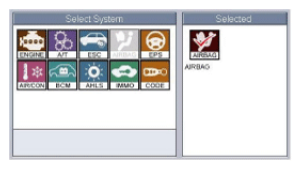

   Fig 1: Display Airbag System Screen

   Courtesy of HYUNDAI MOTOR CO.
   Fig 2: Display PODS Reset Screen

   Courtesy of HYUNDAI MOTOR CO.
3. The GDS will show the two PODS RESET function steps.
   1. Erase PODS diagnostic codes.
   2. PODS initialization.
      Fig 3: Display PODS Initialization Screen

      Courtesy of HYUNDAI MOTOR CO.
      CAUTION: This step must be done PODS re-zero, when the front passenger seat is empty.
4. Press the OK button to erase the PODS related diagnostic codes.
   Fig 4: Display PODS Erase Screen

   Courtesy of HYUNDAI MOTOR CO.
5. Press OK button to initialize the PODS.
   Fig 5: PODS Initialization Display Screen

   Courtesy of HYUNDAI MOTOR CO.
   CAUTION: This step must be done PODS re-zero, when the front passenger seat is empty.
6. The PODS initialization procedure will be performed.
   Fig 6: PODS Initialization Conformed Screen

   Courtesy of HYUNDAI MOTOR CO.
7. Check PODS situation with selecting "Pass. Airbag Realtime Info" after performing PODS Reset procedure.

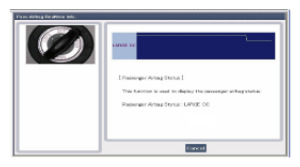

   Fig 7: Display Airbag Realtime Info Screen

   Courtesy of HYUNDAI MOTOR CO.
8. Perform inspection with pressing OK button.
   Fig 8: Display Inspection Screen

   Courtesy of HYUNDAI MOTOR CO.
9. Finish the procedure with pressing cancel button if there is no problem after inspecting each status as below.
   Fig 9: Display Inspection Status (1 Of 3)

   Courtesy of HYUNDAI MOTOR CO.
   Fig 10: Display Inspection Status (2 Of 3)

   Courtesy of HYUNDAI MOTOR CO.
   Fig 11: Display Inspection Status (3 Of 3)

   Courtesy of HYUNDAI MOTOR CO.
