Diagnostic Circuit Diagram: Notes

WARNING: This page is about a different variant/trim than selected.

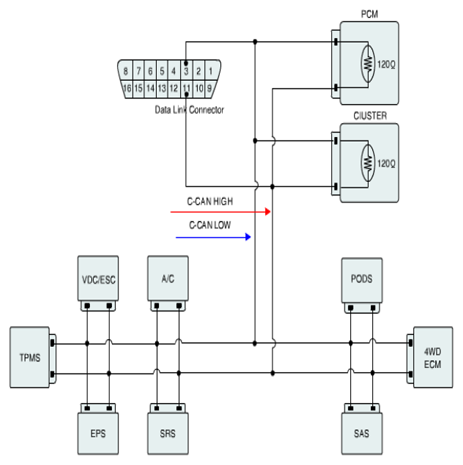

Fig 1: Diagnostic Circuit Diagram
G06871360Courtesy of HYUNDAI MOTOR CO.

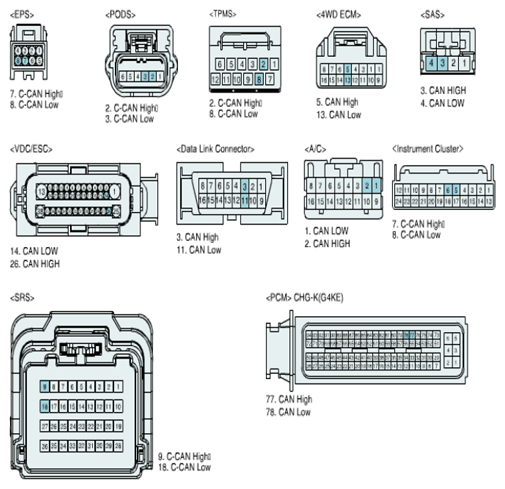

Fig 2: Identifying PCM And 4WD ECM Connectors Terminals
G06871370Courtesy of HYUNDAI MOTOR CO.
