Component Inspection

WARNING: This page is about a different variant/trim than selected.

Actuator Test Check
1. Connect GDS to Data Link Connector (DLC)
2. IG key "ON"
3. Perform Actuator Test with GDS.

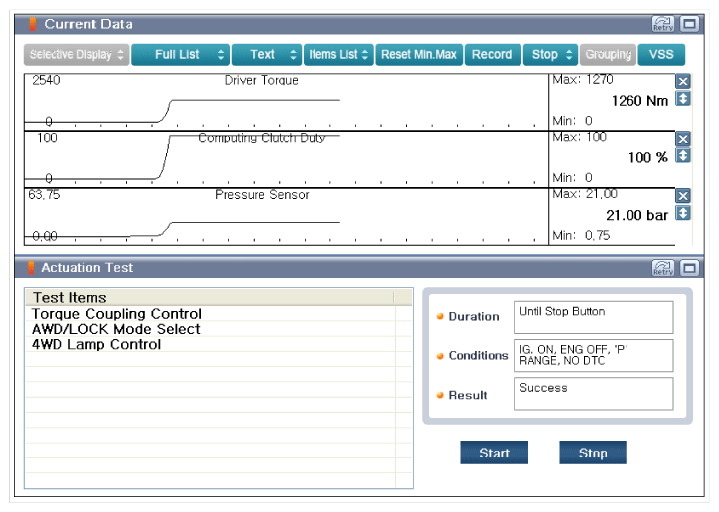

  Fig 1: Display - Actuator Test With GDS Screen
  Courtesy of HYUNDAI MOTOR AMERICA
4. Are any DTCs present?
  YES
  - Substitute with a known-good "Coupling" and check for proper operation. If the problem is corrected, replace "Coupling" and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
