Signal Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect IAT sensor connector and PCM connector.
  3. Measure the resistance between signal terminal of IATS harness connector and chassis ground.

    Specification:  Infinite

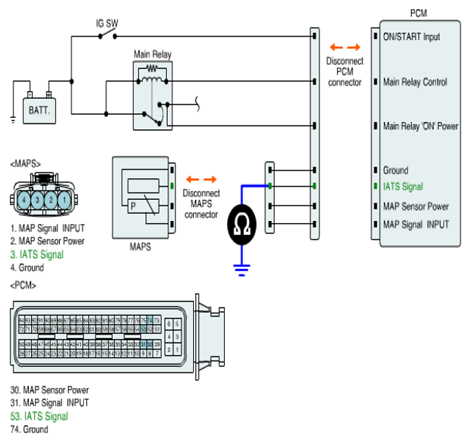

    Fig 1: Measuring Resistance Between Signal Terminal Of IATS Harness Connector And Chassis Ground
    G06871518Courtesy of HYUNDAI MOTOR CO.
  4. Is resistance within the specification?

    YES

    • Go to next step as below.

    NO
