Section 47 (Smart Key System (HEV))
>>
Smart Key Unit
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

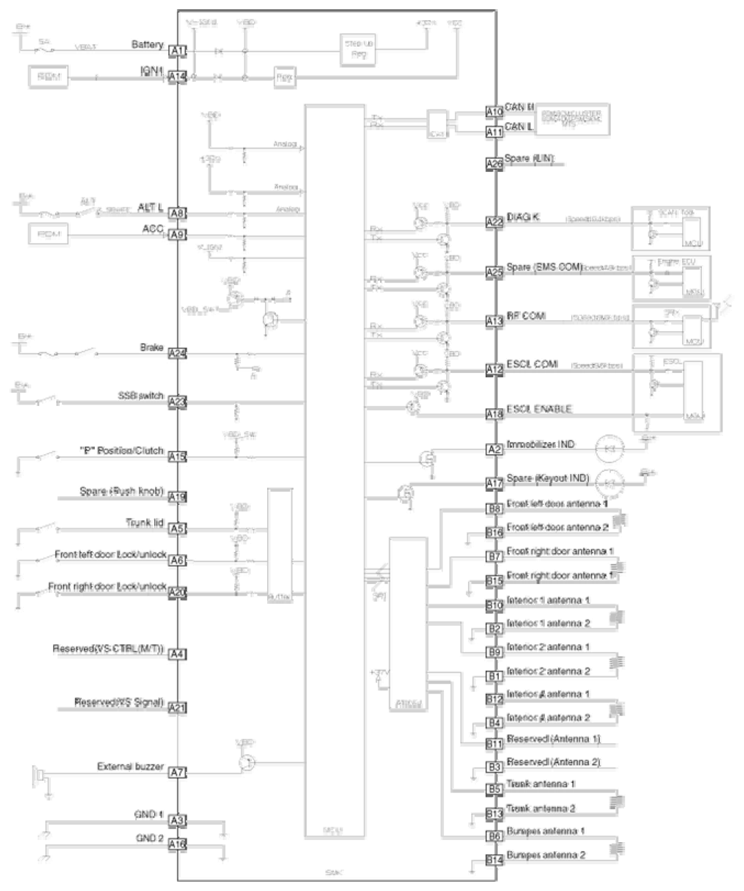

Fig 1: Smart Key Unit Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
