FOB Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

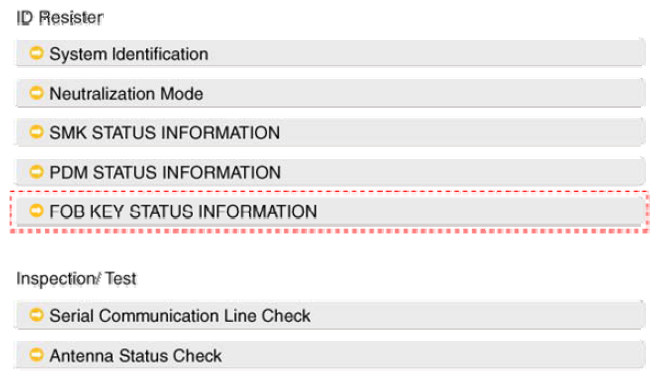

    Fig 1: Selecting FOB KEY STATUS INFO
    G07318876Courtesy of HYUNDAI MOTOR CO.

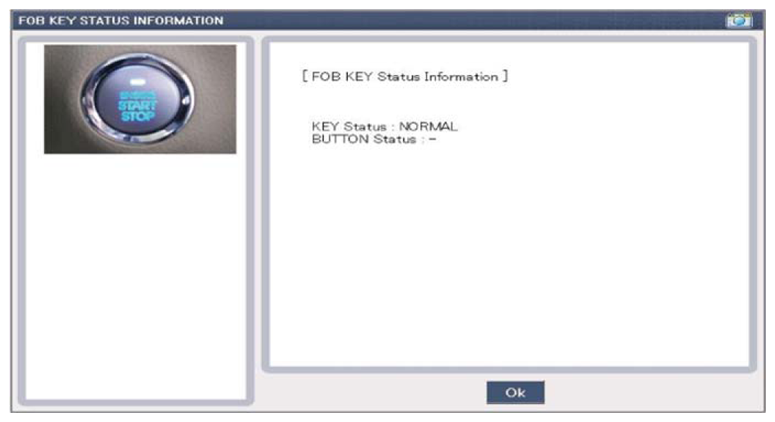

    Fig 2: Screen Display - FOB KEY STATUS INFORMATION
    G07318877Courtesy of HYUNDAI MOTOR CO.
