Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

Fig 1: Locating Front Wheel And Tire
Courtesy of HYUNDAI MOTOR CO.

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).
Remove the brake caliper mounting bolts, and then place the brake caliper assembly (B) with wire.
Tightening torque:

78.4 ~ 98.0 N.m (8.0 ~ 10.0 kgf.m, 57.8 ~ 72.3 lb-ft)

Fig 2: Locating Brake Caliper Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove driveshaft nut (A) from the front hub under applying the brake.
Tightening torque:

215.7 ~ 254.9 N.m (20.0 ~ 26.0 kgf.m, 159.1 ~ 188.0 lb-ft)

Fig 3: Locating Driveshaft Nut
Courtesy of HYUNDAI MOTOR CO.
CAUTION:
- The front hub lock nut should be replaced with new ones.
- After installation lock nut, stake the lock nut using a chisel and hammer as shown in the illustration below.

  Fig 4: Staking Lock Nut Using Chisel And Hammer
  Courtesy of HYUNDAI MOTOR CO.
Loosen the front brake disc mount screw and then remove the front brake disc (A).
Tightening torque:

4.9 ~ 5.8 N.m (0.5 ~ 0.6 kgf.m, 3.6 ~ 4.3 lb-ft)

Fig 5: Locating Front Brake Disc Mount Screw
Courtesy of HYUNDAI MOTOR CO.
Remove the tie rod end ball joint (A) from the knuckle.
1. Remove the split pin (C).
2. Remove the castle nut (B).
  Tightening torque:

  34.3 ~ 44.0 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.5 lb-ft)

  Fig 6: Locating Tie Rod End Ball Joint, Castle Nut And Split Pin
  Courtesy of HYUNDAI MOTOR CO.
Loosen the mount bolt and then remove the wheel speed sensor (B) from knuckle.
Tightening torque:

6.8 ~ 10.7 N.m (0.7 ~ 1.1 kgf.m, 5.0 ~ 7.9 lb-ft)

Fig 7: Locating Wheel Speed Sensor Mount Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the lower arm (A) from the knuckle.
Tightening torque:

98.0 ~ 117.6 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.7 lb-ft)

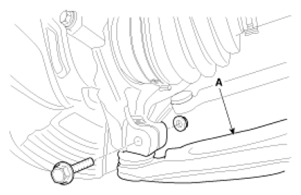

Fig 8: Locating Lower Arm
Courtesy of HYUNDAI MOTOR CO.
Disconnect the driveshaft (A) from the front hub assembly.

Fig 9: Locating Driveshaft
Courtesy of HYUNDAI MOTOR CO.
Loosen the strut mount bolts and then remove the knuckle assembly (A).
Tightening torque:

137.2 ~ 156.9 N.m (14.0 ~ 16.0 kgf.m, 101.2 ~ 115.7 lb-ft)

Fig 10: Locating Knuckle Assembly
Courtesy of HYUNDAI MOTOR CO.
Install in the reverse order of removal.
Check the alignment. (Refer to 'TIRES/WHEELS - ALIGNMENT ')
