Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

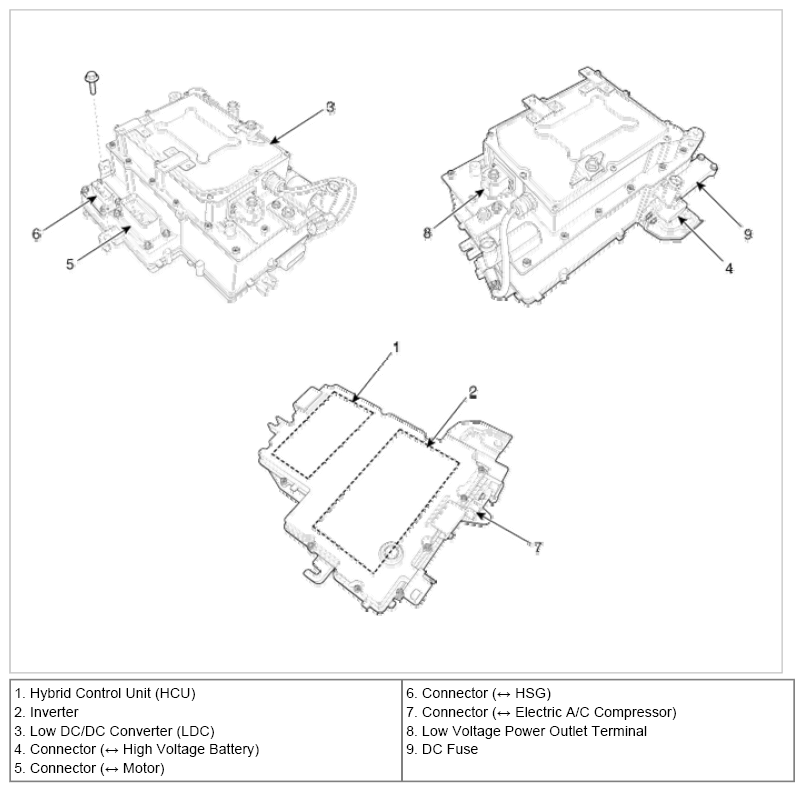

Fig 1: Identifying Hybrid Power Control Unit Components
G07319588Courtesy of HYUNDAI MOTOR CO.
