Component Location

WARNING: This page is about a different variant/trim than selected.

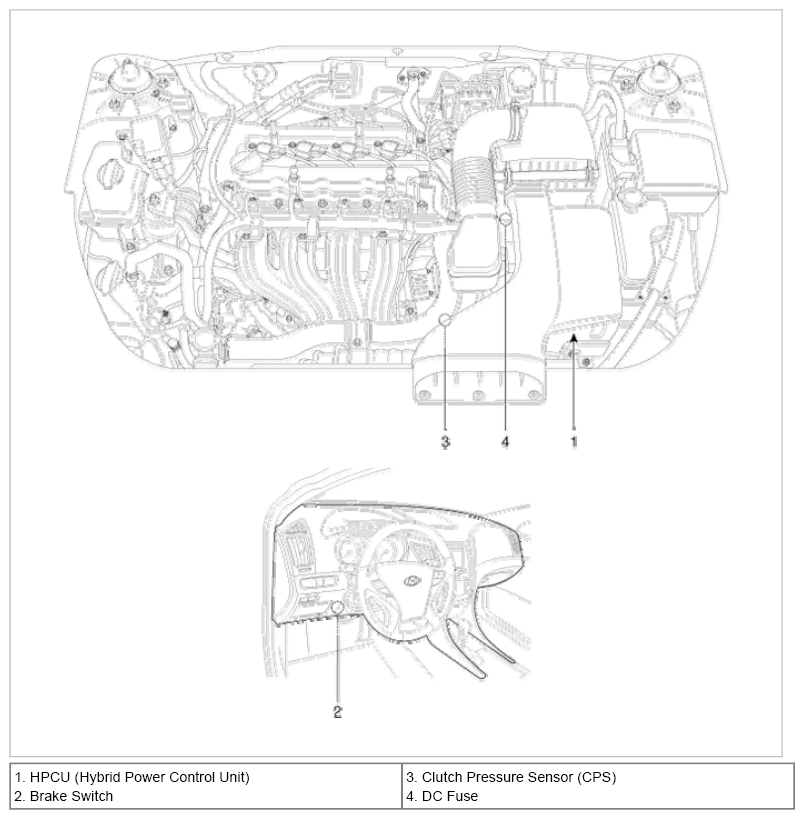

Fig 1: Identifying Hybrid Control System

Courtesy of HYUNDAI MOTOR CO.

NOTE: HPCU includes the HCU (Hybrid Control Unit), Inverters (for Drive Motor, HSG and Electric A/C Compressor), MCU (Motor Control Unit) and LDC (Low DC/DC Converter).

NOTE: For the location of the other control modules, refer to the relevant system. .

HPCU (Hybrid Power Control Unit)
HCU (Hybrid Control Unit)

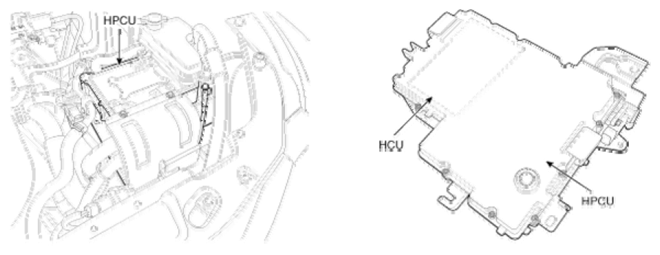

Fig 2: Identifying Hybrid Power Control Unit And Hybrid Control Unit
Courtesy of HYUNDAI MOTOR CO.
Brake Switch
Clutch Pressure Sensor (CPS)

Fig 3: Identifying Brake Switch
Courtesy of HYUNDAI MOTOR CO.

Fig 4: Identifying Clutch Pressure Sensor
Courtesy of HYUNDAI MOTOR CO.
DC Fuse

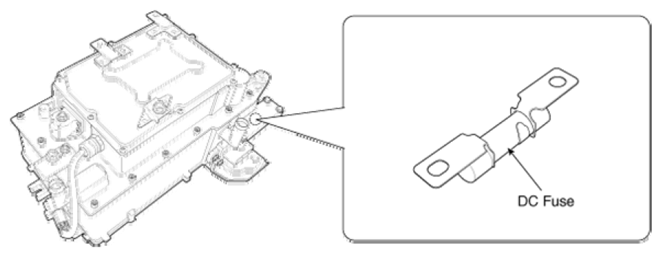

Fig 5: Identifying DC Fuse
Courtesy of HYUNDAI MOTOR CO.
