Trunk Lid Open Switch

  1. Check for continuity between the Trunk lid open switch terminals.

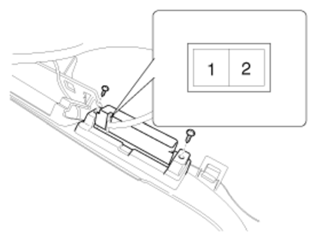

    Fig 1: Identifying Trunk Lid Open Switch Connector Terminals
    G07359828Courtesy of HYUNDAI MOTOR CO.
  2. If continuity is not specified, inspect the switch

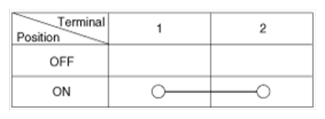

    Fig 2: Trunk Lid Open Switch Terminal Continuity Chart
    G07359829Courtesy of HYUNDAI MOTOR CO.


  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk door trim.

    (Refer to the "TRUNK ")

  3. Remove the trunk lid panel after disconnecting the connector and loosening the mounting screws.

    (Refer to the "TRUNK LID ")

  4. Disconnect the trunk lid open switch connector (A).

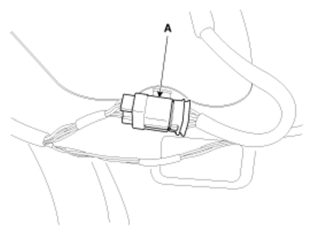

    Fig 1: Identifying Trunk Lid Open Switch Connector
    G07359845Courtesy of HYUNDAI MOTOR CO.
  5. Remove the outside handle (A) from the trunk garnish after loosening the trunk outside handle mounting screws.

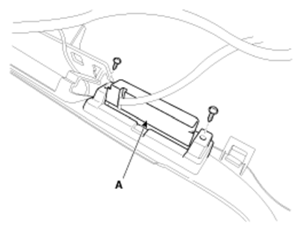

    Fig 2: Identifying Outside Handle With Mounting Screws
    G07359846Courtesy of HYUNDAI MOTOR CO.
