RF Receiver

NOTE:
  • Take care not to scratch the crash pad and related parts
  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to the "CRASH PAD ")

  3. Remove the RF receiver (A) after loosening the mounting nuts (2EA) and disconnecting the connector.

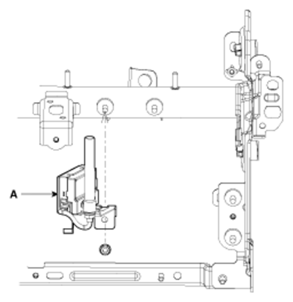

    Fig 1: Identifying RF Receiver With Mounting Nut
    G07359832Courtesy of HYUNDAI MOTOR CO.
