Circuit Diagram

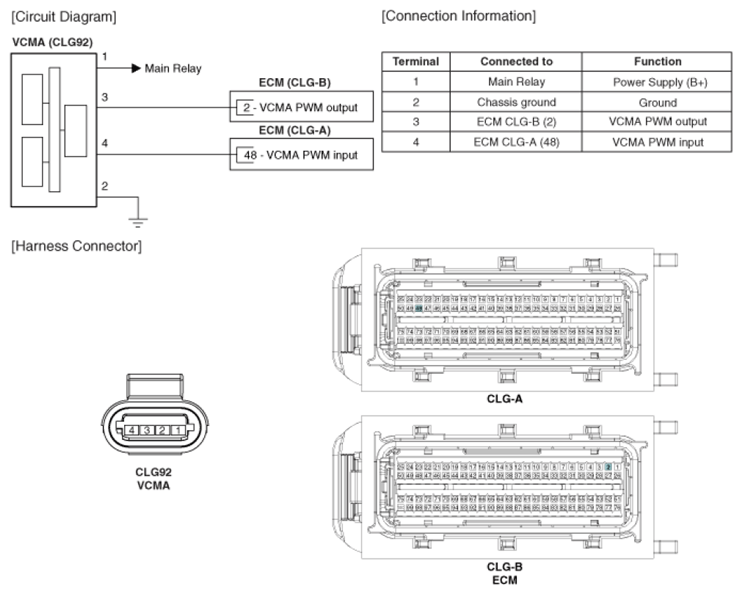

Fig 1: Variable Charge Motion Actuator Circuit Diagram

G06844960

Courtesy of HYUNDAI MOTOR CO.
