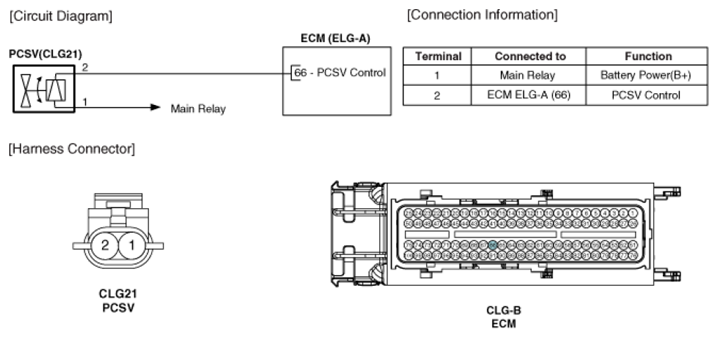

Home >> Hyundai >> 2012 >> Genesis Coupe 3.8 Track, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.8L >> Purge Control Solenoid Valve (PCSV) >> Schematic Diagrams >> Circuit Diagram
