DTC B1991: Immobilizer TX Short Circuit To Ground: General Description

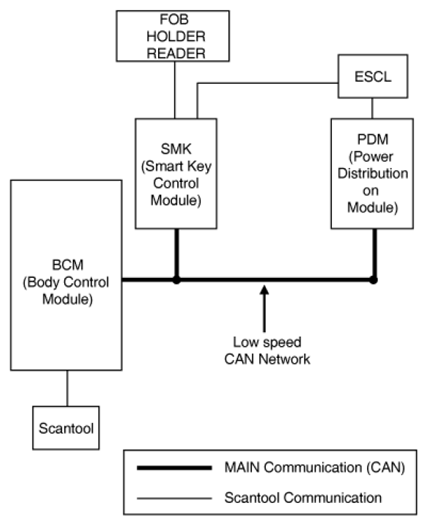

The body electrical system is comprised of four ECU applied CAN*1 communication nodes.
* Control Units: BCM (Body Control Module), PDM (Power Distribution Module), CLU (Cluster), SMK (Smart Key) ECU.
After insert the fob into the fob holder, press SSB button. Then, the communication state between the fob and the immobilizer is inputted to PDM.
*1 CAN (Controller Area Network): CAN is serial bus communication type which links not only communication system but also control units each other.
*2 LIN (Local Interconnect Network): LIN is serial communication type which is used in electrical control system. (This is less expensive.)
