Genesis Coupe 2.0T, Automatic Trans
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Electronic Stability Control (ESC) System
>>
DTC C1203: Wheel Speed Sensor Front-RH Open/Short
>>
Signal Waveform & Data
Signal Waveform & Data

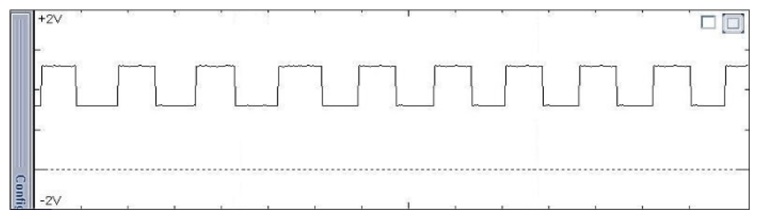

Fig 1: Normal Waveform Pattern Of Wheel Speed Sensor (Active Type)
Courtesy of HYUNDAI MOTOR CO.
High: Approx. 1.4V, Low: Approx. 0.7V
