Assist Power Window Switch

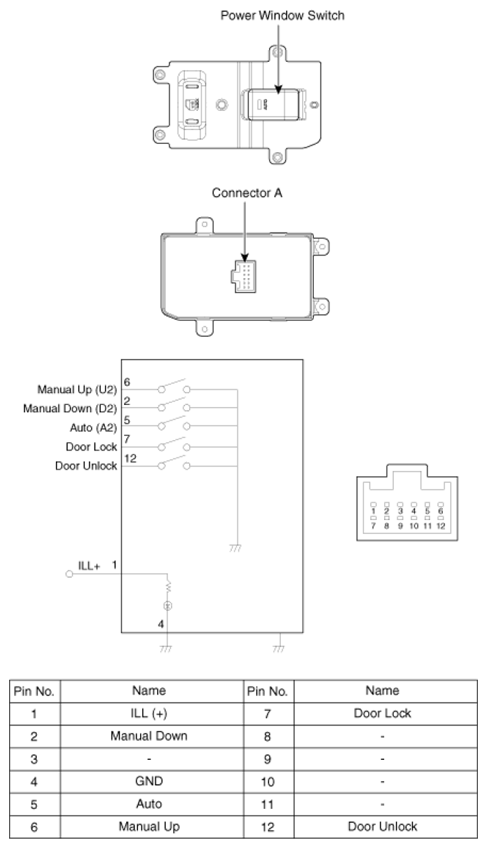

Fig 1: Identifying Assist Power Window Switch, Connector, & Terminals

G06513838

Courtesy of HYUNDAI MOTOR CO.
