Switch Diagnosis

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
  2. Select the vehicle model, and then SMART KEY system.

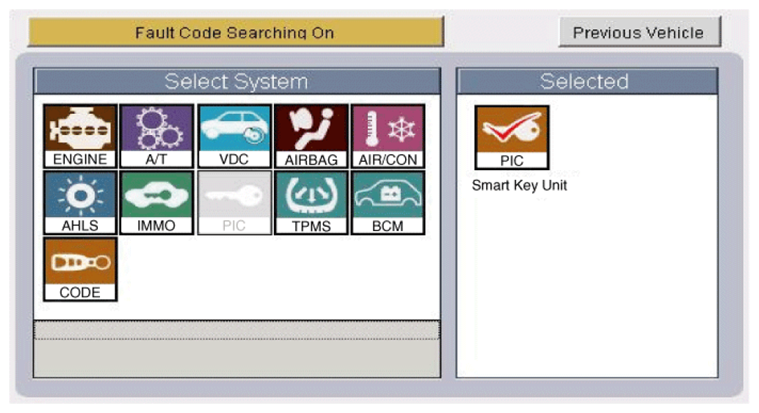

    Fig 1: GDS Screen Display - Smart Key Unit
    G06510024Courtesy of HYUNDAI MOTOR CO.
  3. Select the "SMART KEY unit".
  4. After IG ON, select the "Current data".

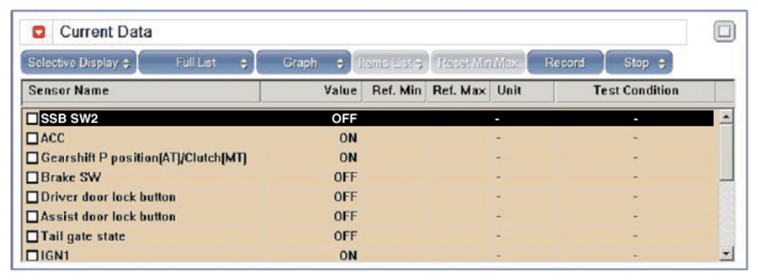

    Fig 2: GDS Screen Display - Current Data
    G06510025Courtesy of HYUNDAI MOTOR CO.
  5. You can see the situation of each switch on scanner after connecting the "current data" process.
    CURRENT DATA SCREEN REFERENCE CHART

    Display Description
    FL Toggle SW ON: Push button is ON in the driver door handle.
    FR Toggle SW ON: Push button is ON in the assist door handle.
    Trunk SW ON: Trunk button is ON.
    Gear P Position ON: Shift lever is P position.
    IGN 1 ON: IGN switch is IG position.
    ACC ON: IGN switch is ACC position.
    Push Knob SW ON: Push knob switch is ON.
    External Buzzer ON: Buzzer is ON.
