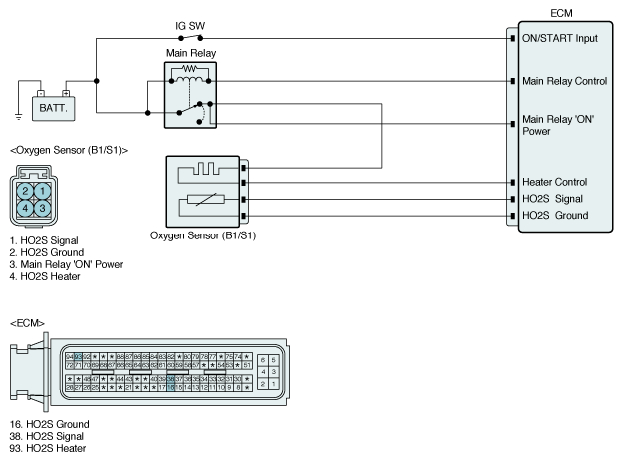

Home >> Hyundai >> 2012 >> Genesis Coupe 2.0T, Automatic Trans >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System (DTC Troubleshooting) (1 Of 3) - 2.0L >> DTC P0130: O2 Sensor Circuit (Bank 1/Sensor 1) >> Diagnostic Circuit Diagram
