Section 46 (Steering Column Module Diagnosis)
>>
DTC B1960: Tele Position Sensor Error
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different variant/trim than selected.

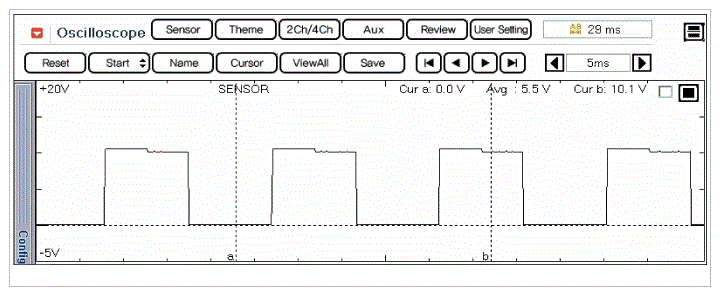

Fig 1: Display - Telescopic Motor/Position Sensor Signal Waveform
Courtesy of HYUNDAI MOTOR AMERICA
