Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Engine start.
  3. Monitor "battery sensor" parameter on GDS

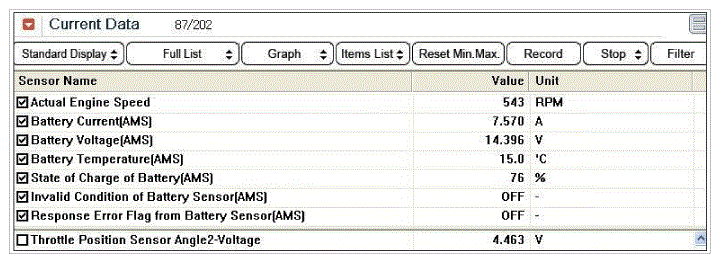

    Fig 1: Display - Battery Sensor Parameter Current Data
    G08824648Courtesy of HYUNDAI MOTOR AMERICA
  4. Is parameter displayed "Present fault"?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECMs connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
