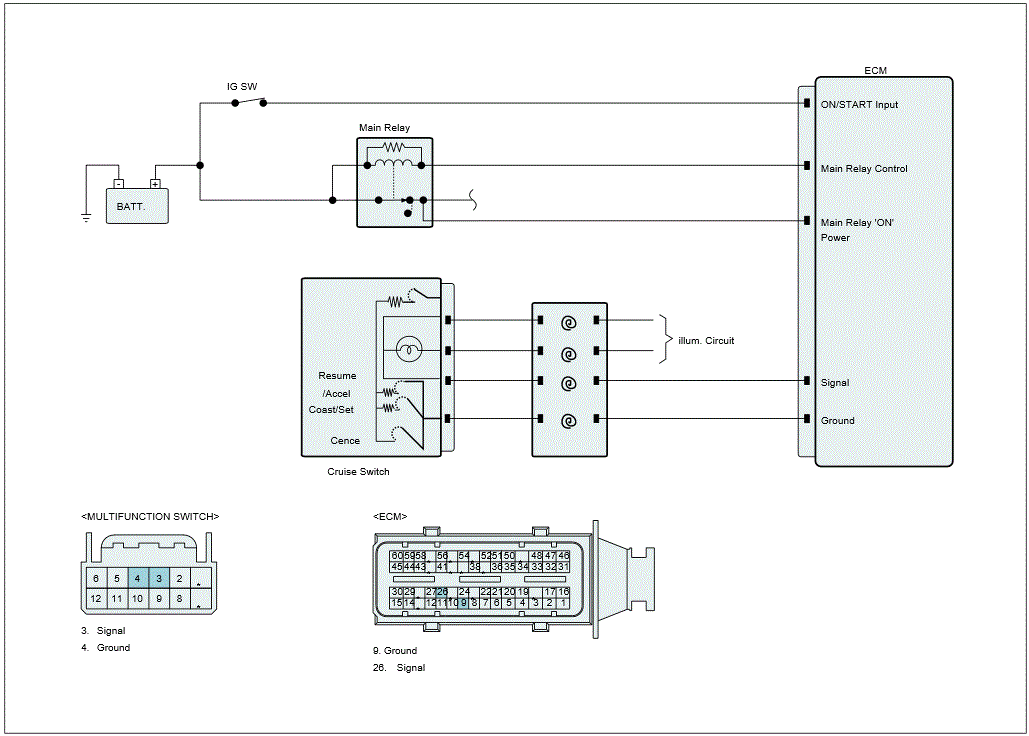

Home >> Hyundai >> 2012 >> Genesis 5.0 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (3 Of 3) - 5.0L >> DTC P0564: Cruise Control Multi-Function Input A Circuit >> General Information >> Diagnostic Circuit Diagram
