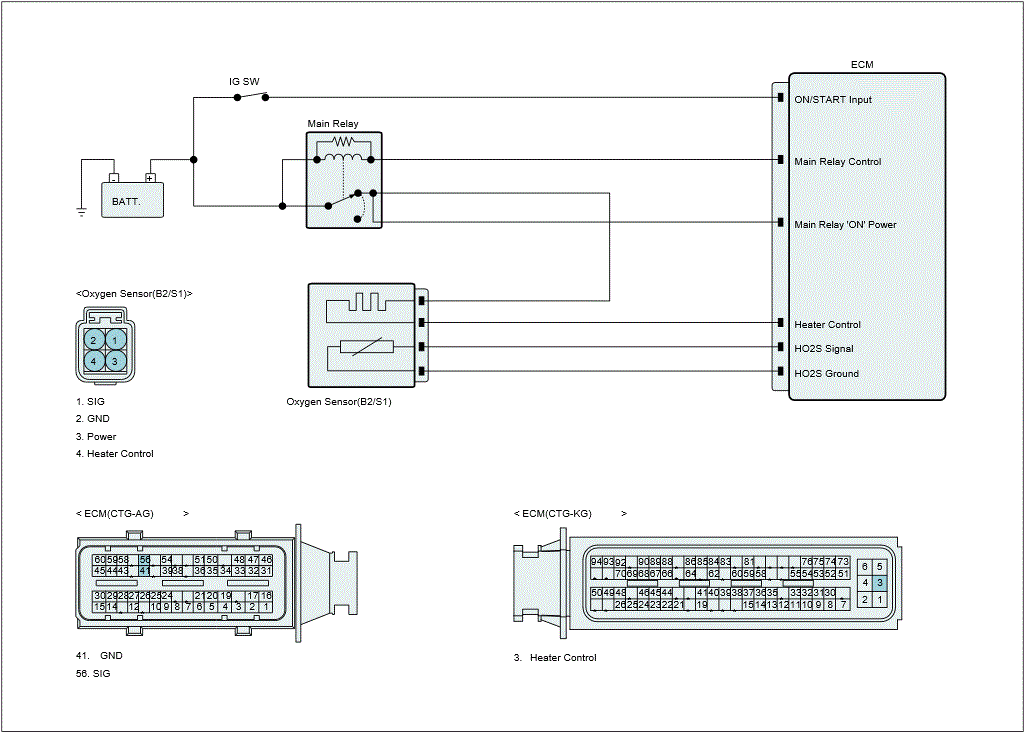

Home >> Hyundai >> 2012 >> Genesis 5.0 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 3) - 5.0L >> DTC P0150: O2 Sensor Circuit (Bank 2/Sensor 1) >> General Information >> Diagnostic Circuit Diagram
