Home >> Hyundai >> 2012 >> Genesis 4.6 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine And Transmission Assembly - 4.6L >> Engine Mounting >> Components and Components Location >> Components

Components and Components Location: Components

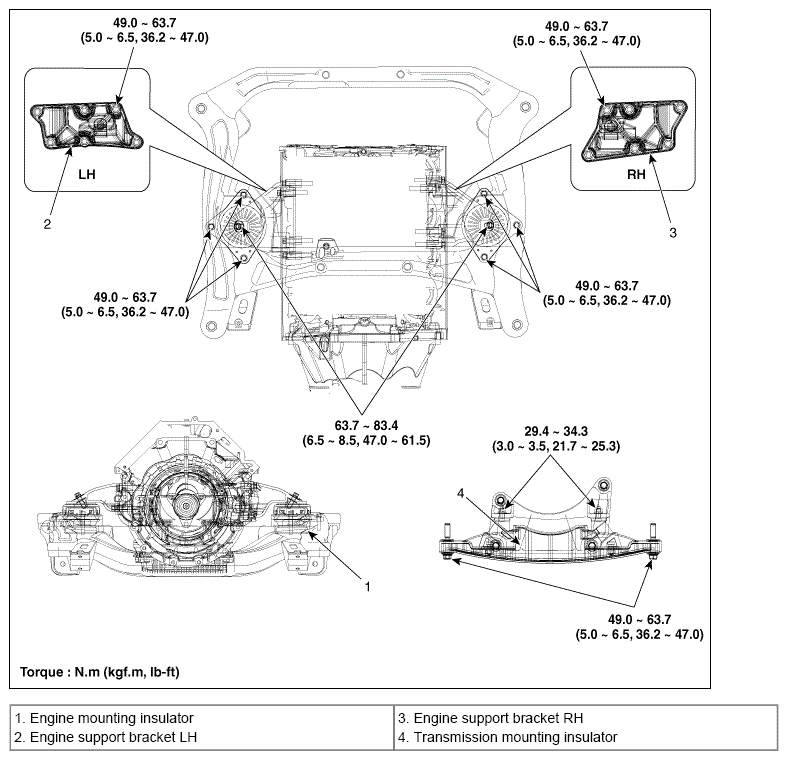

Fig 1: Engine Mounting Replacement Components With Torque Specifications

G08818562

Courtesy of HYUNDAI MOTOR AMERICA
