Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

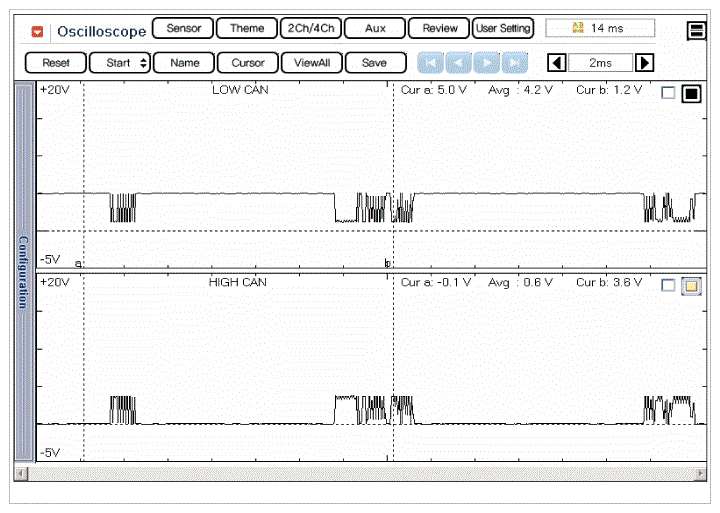

Fig 1: Display - CAN Low/High Signal Waveform
G08839645Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Display - CAN Bus Voltage Level (Low Speed CAN)
G08839646Courtesy of HYUNDAI MOTOR AMERICA
