Component Inspection

WARNING: This page is about a different variant/trim than selected.

Front Height Motor Check
1. Connect scantool
2. IG "ON" & ENG "OFF"
3. Select "Actuation Test" mode.
4. Execute "Front Power Seat (UP, DOWN)" test.
  Specification: Turned to pressed direction

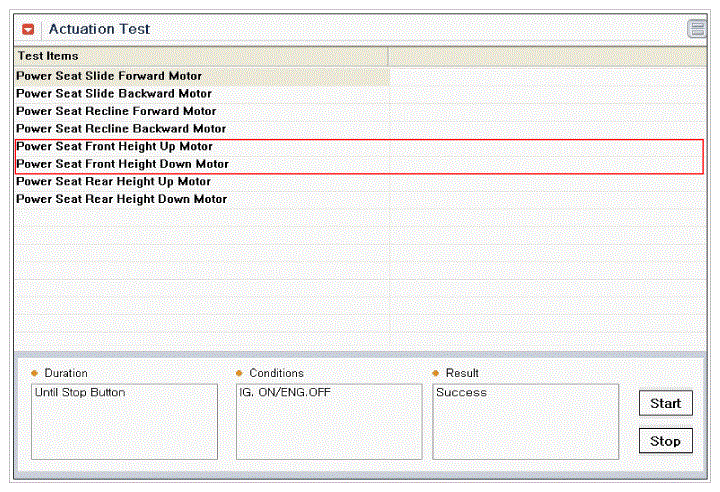

  Fig 1: Display - Power Seat Front Height Motor Actuation Test
  Courtesy of HYUNDAI MOTOR AMERICA
5. Is motor working normal?
  YES
  - Go to "W/HARNESS INSPECTION " procedure.
  NO
  - Go to next procedure.
Check switch
1. IG "ON" & ENG "OFF"
2. After connect GDS, select "Current Date" menu.
3. Check whether "Seat Front Side Switch" is turned to "ON" when the control switch is pressed. (UP, DOWN)
  Specification: Service data is switched. (ON ↔ OFF)

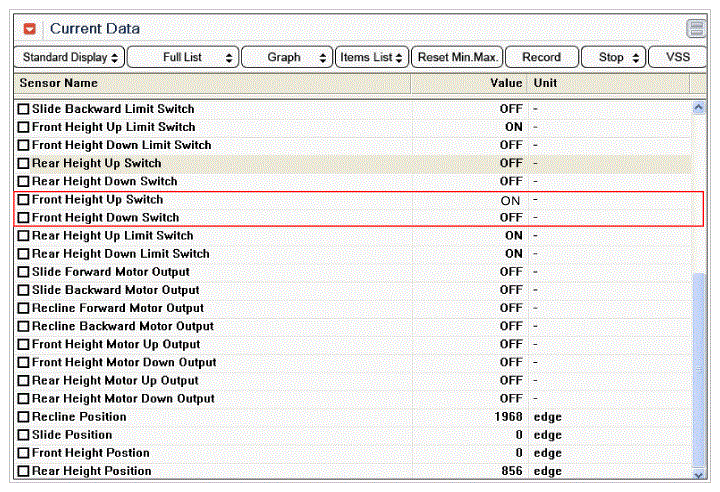

  Fig 2: Display - Front Height Switch Current Data
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is the service data normal?
  YES
  - Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
  NO
  - Substitute with a known - good component and check for proper operation.
    If the problem is corrected, replace the component and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
