Power Circuit Inspection

Check voltage
1. IG "OFF" and disconnect Cruise switch connector.
2. IG "ON"
3. Measure voltage between power terminal of Cruise switch harness connector and chassis ground.
  Specification: Approx. B+

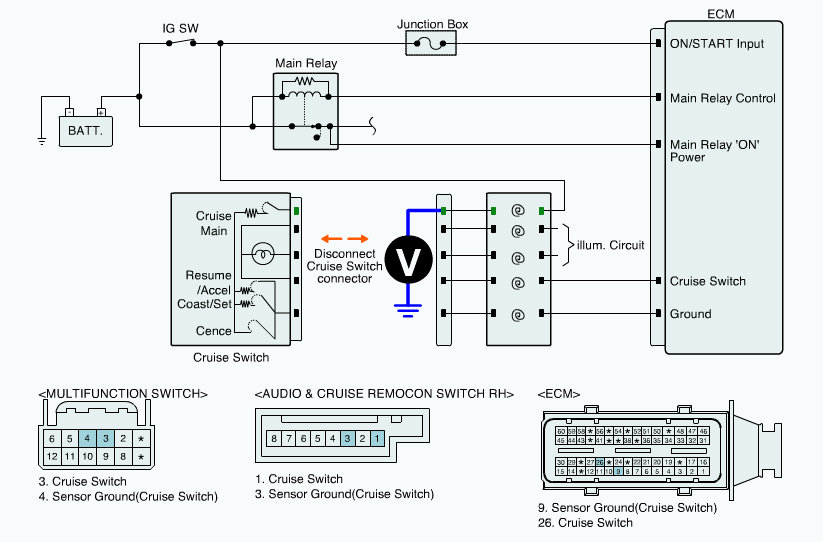

  Fig 1: Measuring Voltage Between Power Terminal Of Cruise Switch And Chassis Ground
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?
  YES
  - Go to "SIGNAL CIRCUIT INSPECTION " procedure.
  NO
  - Repair open or short to ground in harness and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
