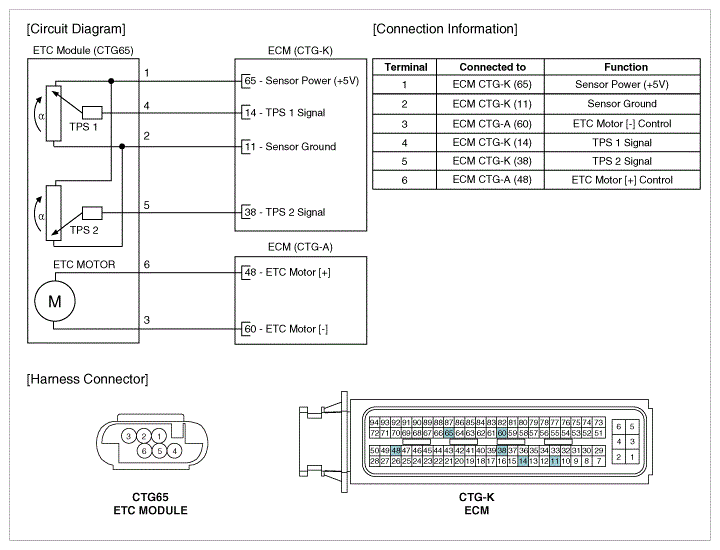

Home >> Hyundai >> 2012 >> Genesis 4.6 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 4.6L >> ETC (Electronic Throttle control) System >> Schematic Diagrams >> Circuit diagram
