Components and Components Location: Components

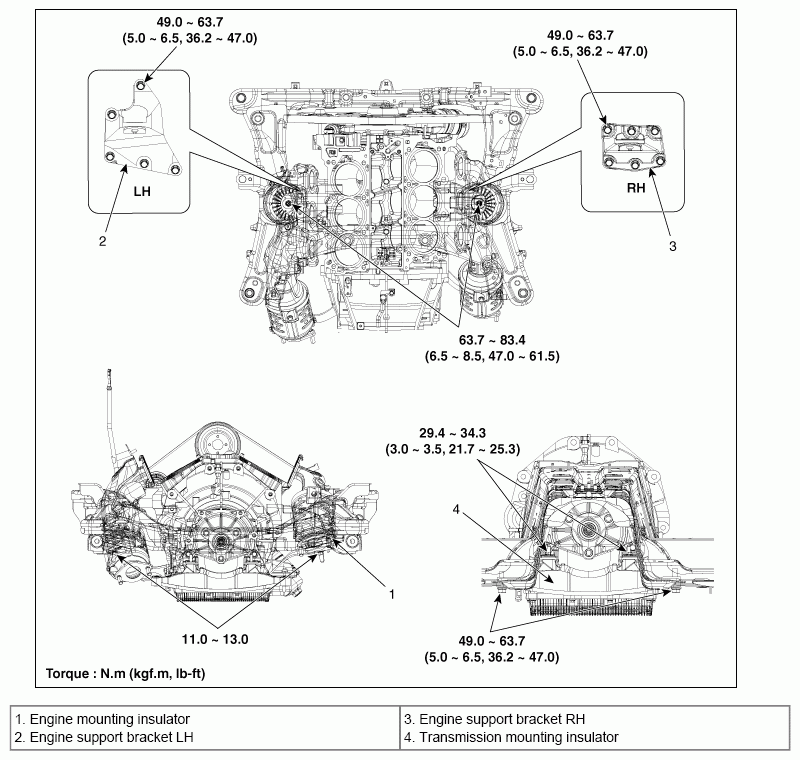

Fig 1: Engine, Transmission Mounting Insulator And Engine Support Brackets With Torque Specifications

G08833573

Courtesy of HYUNDAI MOTOR AMERICA
