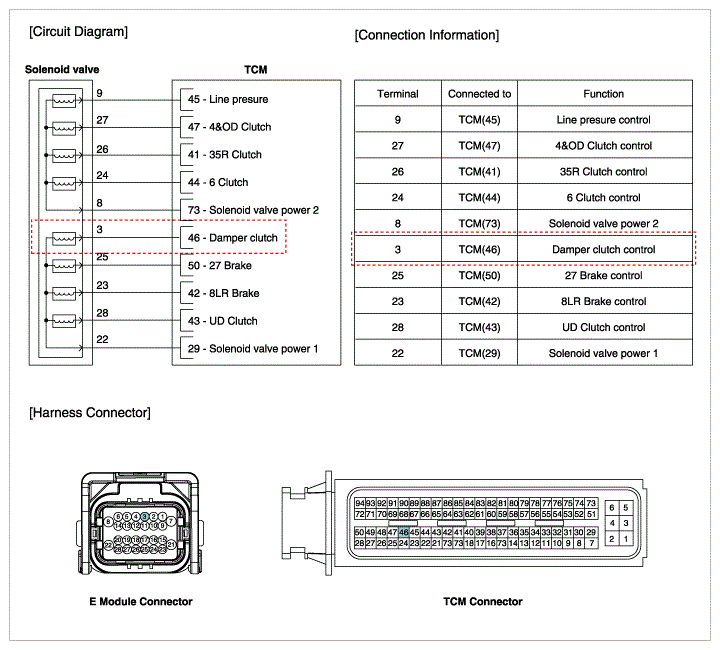

Home >> Hyundai >> 2012 >> Equus Signature >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Damper Clutch Control Solenoid Valve >> Schematic Diagrams >> Circuit Diagram
