Monitor GDS Data

Connect GDS to Data Link Connector (DLC).
Ignition "ON" & engine "OFF".
Select "Current Data" mode and monitor "Inhibitor switch" parameter.
Change a shift lever from P-range to D-range.

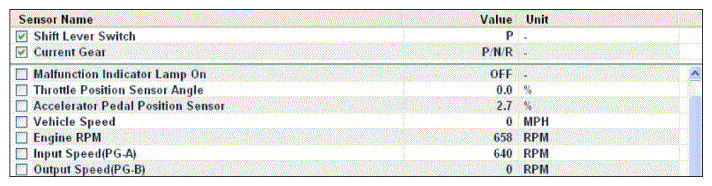

Fig 1: Display - P Range
Courtesy of HYUNDAI MOTOR AMERICA

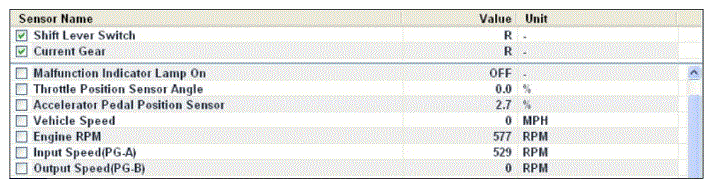

Fig 2: Display - R Range
Courtesy of HYUNDAI MOTOR AMERICA

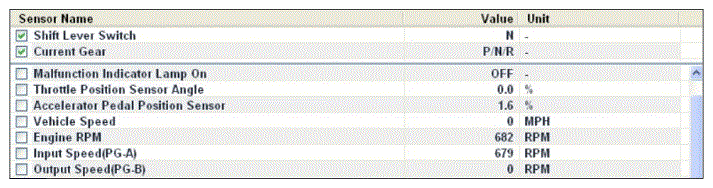

Fig 3: Display - N Range
Courtesy of HYUNDAI MOTOR AMERICA

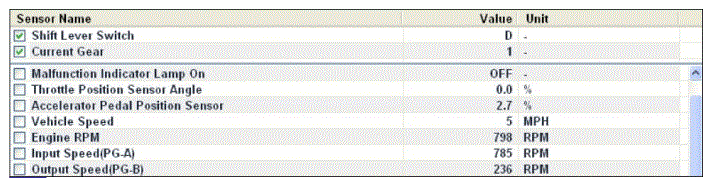

Fig 4: Display - D Range
Courtesy of HYUNDAI MOTOR AMERICA
Is the Inhibitor switch value changed in specification?
YES

Fault is intermittent caused by poor contact of PCM/TCM and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
