Signal Circuit Inspection

Check Open or Short In Signal Circuit
1. IG "OFF" and disconnect HO2S (B1/S2) connector.
2. IG "ON"
3. Measure voltage between signal terminal of HO2S (B1/S2) harness connector and chassis ground.
  Specification: Approx. 0.45V

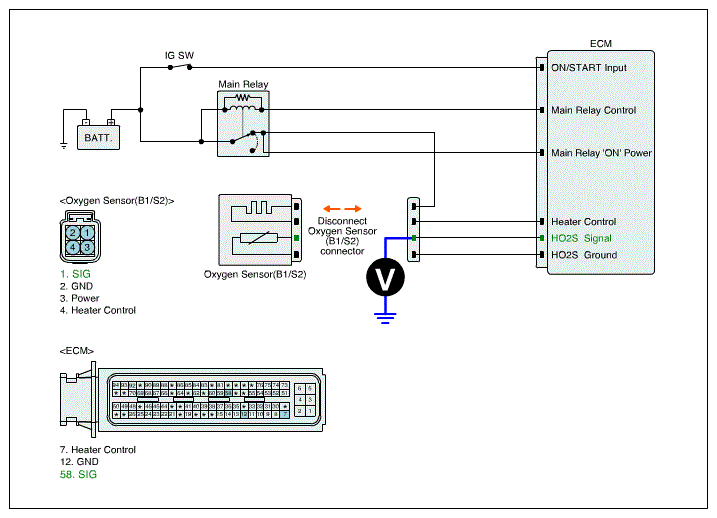

  Fig 1: Measuring Voltage Between Signal Terminal Of HO2S (B1/S2) Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured voltage within specification?
  YES

  Go to "GROUND CIRCUIT INSPECTION " procedure.

  NO

  Repair Open or Short circuit and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
