Diagnostic Circuit Diagram

WARNING: This page is about a different car, the 2011 Hyundai Elantra Touring. However, it is still accessible from the selected car via links, so may be relevant.

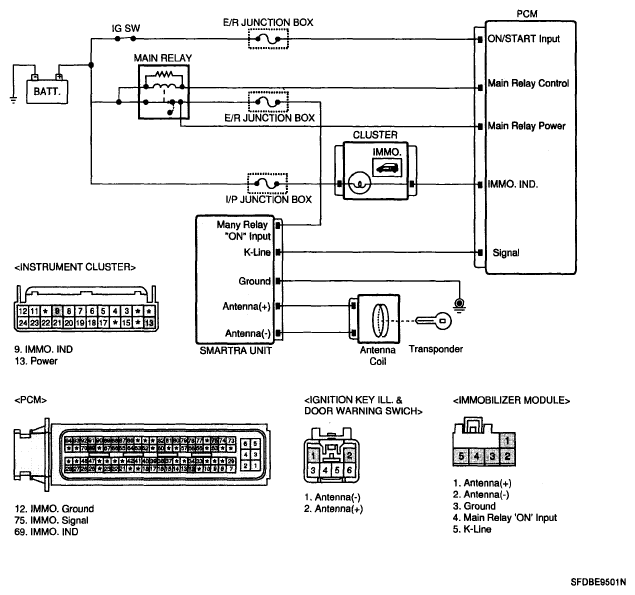

Fig 1: Non-Immobilizer-EMS Connected To An Immobilizer - Circuit Diagram
G06145668Courtesy of HYUNDAI MOTOR CO.
