Elantra Touring GLS, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTC Troubleshooting Procedures
>>
Inspection Chart For Diagnostic Trouble Codes (DTC)
>>
P0506: Idle Air Control System-RPM Lower than Expected
>>
Signal Waveform & Data
Signal Waveform & Data

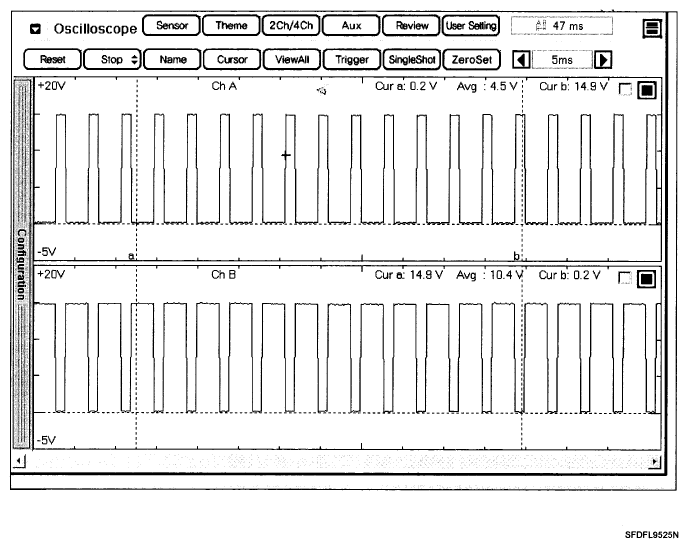

Fig 1: Screen Display - Signal Waveform
Courtesy of HYUNDAI MOTOR CO.
The right side is the waveform of the ISCA Closing coil during idle.
Courtesy of HYUNDAI MOTOR CO.
