Inspection Chart For Diagnostic Trouble Codes (DTC)
>>
P0112: Intake Air Temperature Sensor 1 Circuit Low Input
>>
Signal Waveform & Data
Signal Waveform & Data

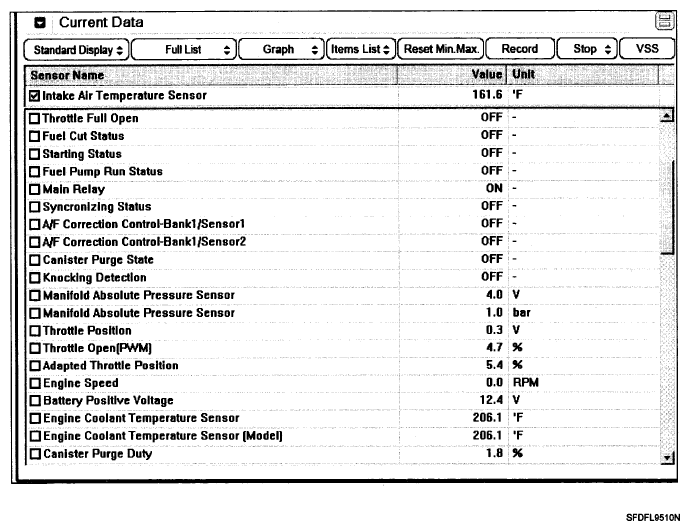

Fig 1: Intake Air Temp, Sensor - Approx. 161.6 °F At IG ON
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
