CVVT (Continuously Variable Valve Timing) System: Description

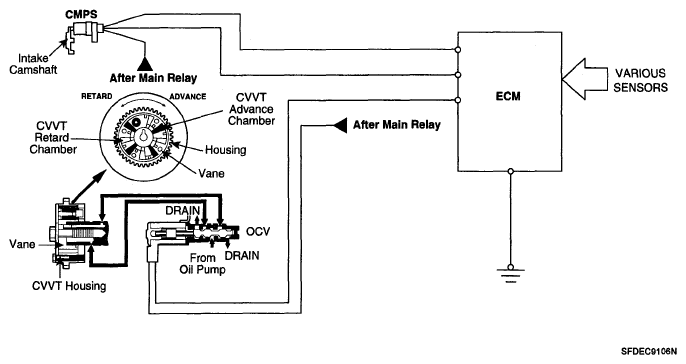

Fig 1: Continuously Variable Valve Timing System Description Chart

Courtesy of HYUNDAI MOTOR CO.

The CVVT (Continuously Variable Valve Timing) which is installed on the exhaust camshaft controls intake valve open and close timing in order to improve engine performance.

The intake valve timing is optimized by CVVT system depending on engine RPM.

This CVVT system improves fuel efficiency and reduces NOx emissions at all levels of engine speed, vehicle speed, and engine load by EGR effect because of valve over-lap optimization.

The CVVT changes the phase of the intake camshaft via oil pressure.

It changes the intake valve timing continuously.

Fig 2: Intake Valve Timing Reference Chart

Courtesy of HYUNDAI MOTOR CO.
