ECM Update - Fuel Volume Control Logic (Service Campaign 951) (SC 951)

Publication date: 2017-12-01
Reference number: SC 951
Supersedes refnos: 17-01-052

ECM UPDATE - FUEL VOLUME CONTROL LOGIC (SERVICE CAMPAIGN 951)

ECM UPDATE - FUEL VOLUME CONTROL LOGIC (SERVICE CAMPAIGN 951)

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 17-01-052, Date of Issue:  December 1, 2017
HYUNDAI: 2011-2016 Elantra (MD/UD); 2013 Elantra GT (GD), Elantra Coupe (JK)
GROUP: Campaign

SERVICE INFORMATION

IMPORTANT: *** Retail Vehicles Only ***
Dealers must perform this Service Campaign whenever an affected vehicle is in the shop for any maintenance or repair.

When a vehicle arrives at the Service Department, access Hyundai Motor America's "Warranty Vehicle Information" screen via WEBDCS to identify open Campaigns.

DESCRIPTION

This bulletin provides instructions related to an Electronic Control Module (ECM) software update to revise the fuel volume control logic. The ECM update is only emissions related. The update is for the applicable models listed below with SULEV emissions certifications only.

Applicable Vehicles:

2011-2016MY Elantra (MD/UD) 1.8L - SULEV

2013MY Elantra GT (GD) 1.8L - SULEV

2013MY Elantra Coupe (JK) 1.8L - SULEV

PART INFORMATION

PART INFORMATION

Part Name Part Number Qty. Figure
Campaign Sticker 00305-SC951 1
G11787646
Vehicle Emission Recall-Proof of Correction Card NP050-09006 1
G11787647

WARRANTY INFORMATION

WARRANTY INFORMATION

Model Op. Code Operation Op. Time Causal Part Nature Cause
Elantra (MD/UD)
Elantra GT (GD)
Elantra Coupe (JK)		 70C047R0 ECM UPDATE 0.4 M/H 00305-SC951 I73 ZZ3
NOTE:
  1. Submit Claim on Campaign Claim Entry Screen.
  2. If a part is found in need of replacement while performing Service Campaign 951 and the affected part is still under warranty, submit a separate warranty claim using the same Repair Order. If the affected part is out of warranty, submit a Prior Approval Request for goodwill consideration prior to performing the work.

GDS INFORMATION

System Selection: ENGINE (ECM)

GDS INFORMATION

Event # Description
446(1) MD/UD 1.8MPI SULEV - FUEL VOLUME CONTROL LOGIC IMPROVEMENT
447(1) GD 1.8MPI SULEV - FUEL VOLUME CONTROL LOGIC IMPROVEMENT
448(1) JK 1.8MPI SULEV - FUEL VOLUME CONTROL LOGIC IMPROVEMENT
(1) (Use the latest event that appears in the GDS ECU Auto Mode event list for the particular vehicle)
NOTE: Refer to TSB 15-GI-001  for the tablet-based Mobile GDS ECU update procedures.
NOTE: You must initially perform GDS ECU Update in Auto Mode.
  • If the ECU Update starts but then fails in Auto Mode, perform the update in Manual Mode to recover.
WARNING: GDS Vehicle Battery Voltage Warning:
If voltage is below 12 volts as per the below GDS warning, then select Back  and run the engine at least 20 minutes to ensure an adequate battery state of charge for reliable update results. Turn ignition back on, and then retry the ECU update again.
G11787648

ROM ID INFORMATION TABLE

ROM ID INFORMATION

MODEL MY IMMO ECU P/N ROM ID
OLD NEW
Elantra (MD/UD) 1.8MPI SULEV  11MY IMMO 39101-2EMA0 MD1SP1MS294B
MD1SP1MS294C
MD1SP1MS294D
MD1SP1MS294E
MD1SP1MS296A
MD1SP1MF2E3A
MD1SP1MF2EAA		 MD1SP1MF2ECB
NON IMMO 39103-2EMA0 MD1SP1NS294B
MD1SP1NS294C
MD1SP1NS294D
MD1SP1NS294E
MD1SP1NS296A
MD1SP1NF2E3A
MD1SP1NF2EAA		 MD1SP1NF2ECB
12MY IMMO 39101-2EMA2
39101-2EMN2		 MD2SP1MS2B0A
MD2SP1MS2B4A
MD2SP1MS2B4B
MD2SP1MS2B4C
MD2SP1MS2B7A
MD2SP1MF2E3A
MD2SP1MF2EAA		 MD2SP1MF2ECB
NON IMMO 39103-2EMA2
39103-2EMN2		 MD2SP1NS2B0A
MD2SP1NS2B4A
MD2SP1NS2B4B
MD2SP1NS2B4C
MD2SP1NS2B7A
MD2SP1NF2E3A
MD2SP1NF2EAA		 MD2SP1NF2ECB
13MY IMMO 39101-2EMA3
39101-2EMN3		 MD3SP1MS2D2A
MD3SP1MS2D2B
MD3SP1MS2D8A
MD3SP1MS2E3A
MD3SP1MF2EAA		 MD3SP1MF2ECB
NON IMMO 39103-2EMA3
39103-2EMN3		 MD3SP1NS2D2A
MD3SP1NS2D2B
MD3SP1NS2D8A
MD3SP1NS2E3A
MD3SP1NF2EAA		 MD3SP1NF2ECB
14MY IMMO 39101-2EMA4
39101-2EMK4		 MD4SP1MS2F3A
MD4SP1MS2G0A
MD4SP1MS2G0B
MD4SP1MS2G0C
MD4SP1MS2G2A
MD4SP1MF2G3A		 MD4SP1MF2G3B
39101-2EMP4
39101-2EMS4		 MD4SP1MS2G3A
MD4SP1MF2G3A		 MD4SP1MF2G3B
NON IMMO 39103-2EMA4
39103-2EMK4
39103-2EMV5
39103-2EMX5		 MD4SP1NS2F3A
MD4SP1NS2G0A
MD4SP1NS2G0B
MD4SP1NS2G0C
MD4SP1NS2G2A
MD4SP1NF2G3A		 MD4SP1NF2G3B
39103-2EMP4
39103-2EMS4		 MD4SP1NS2G3A
MD4SP1NF2G3A		 MD4SP1NF2G3B
15MY IMMO 39101-2EMA5
39101-2EMK5
39101-2EMV5
39101-2EMX5		 MD5SP1MS2G3A
MD5SP1MF2G3A		 MD5SP1MF2G3B
NON IMMO 39103-2EMA5
39103-2EMK5
39103-2EMV5
39103-2EMX5		 MD5SP1NS2G3A
MD5SP1NF2G3A		 MD5SP1NF2G3B
16MY IMMO 39101-2EMA6
39101-2EMK6		 MD6SP1MS2H3A
MD6SP1MS2H3B		 MD6SP1MF2H3A
Elantra GT (GD) 1.8MPI SULEV  13MY IMMO 39101-2EGA3 GD3SP1MS2D4A
GD3SP1MS2D4B
GD3SP1MS2D8A
GD3SP1MS2E3A
GD3SP1MF2EAA
GD3SP1MF2EBA		 GD3SP1MF2ECA
NON IMMO 39103-2EGA3 GD3SP1NS2D4A
GD3SP1NS2D4B
GD3SP1NS2D8A
GD3SP1NS2E3A
GD3SP1NF2EAA
GD3SP1NF2EBA		 GD3SP1NF2ECA
Elantra Coupe (JK) 1.8MPI SULEV  13MY IMMO 39101-2EJA3 JK3SP1MS2D2A
JK3SP1MS2D2B
JK3SP1MS2D4A
JK3SP1MS2D8A
JK3SP1MS2E3A
JK3SP1MF2EAA
JK3SP1MF2EBA		 JK3SP1MF2ECA
NON IMMO 39103-2EJA3 JK3SP1NS2D2A
JK3SP1NS2D2B
JK3SP1NS2D4A
JK3SP1NS2D8A
JK3SP1NS2E3A
JK3SP1NF2EAA
JK3SP1NF2EBA		 JK3SP1NF2ECA
NOTE: IMMO = Start Stop Button, NON IMMO = Key Start

MANUAL MODE PASSWORD INFORMATION TABLE

MANUAL MODE PASSWORD INFORMATION

EVENT # MENU PASSWORD
#446 MD/UD 1.8MPI NON IMMO 39103-2EMA0 0320
MD/UD 1.8MPI NON IMMO 39103-2EMA2/N2 0322
MD/UD 1.8MPI NON IMMO 39103-2EMA3/N3 0323
MD/UD 1.8MPI NON IMMO 39103-2EMA4/K4/V5/X5/P4/S4 0324
MD/UD 1.8MPI NON IMMO 39103-2EMA5/K5/V5/X5 0325
MD/UD 1.8MPI IMMO 39101-2EMA0 0120
MD/UD 1.8MPI IMMO 39101-2EMA2/N2 0122
MD/UD 1.8MPI IMMO 39101-2EMA3/N3 0123
MD/UD 1.8MPI IMMO 39101-2EMA4/K4/P4/S4 0124
MD/UD 1.8MPI IMMO 39101-2EMA5/K5/V5/X5 0125
MD/UD 1.8MPI IMMO 39101-2EMA6/K6 0126
#447 GD 1.8MPI NON IMMO 39103-2EGA3 0323
GD 1.8MPI IMMO 39101-2EGA3 0123
#448 JK 1.8MPI NON IMMO 39103-2EJA3 0323
JK 1.8MPI IMMO 39101-2EJA3 0123
NOTE: IMMO = Start Stop Button, NON IMMO = Key Start

For vehicles registered in California, Connecticut, Delaware, Maine, Maryland, Massachusetts, New Jersey, New York, Oregon, Pennsylvania, Rhode Island, Vermont and Washington:

VEHICLE EMISSION RECALL - PROOF OF CORRECTION CARD

A Vehicle Emission Recall - Proof of Correction card must be filled out for all vehicles registered in California, Connecticut, Delaware, Maine, Maryland, Massachusetts, New Jersey, New York, Oregon, Pennsylvania, Rhode Island, Vermont and Washington. Residents of these states, who own an affected vehicle, will be required to possess a Vehicle Emission Recall - Proof of Correction card as evidence of voluntary service campaign completion, when they apply for vehicle registration renewal.

WHAT TO DO WITH THE CARD

The Vehicle Emission Recall - Proof of Correction card must  be completed by the Dealership's Service Manager using a permanent ink pen. A fine point pen is recommended. When filling in the information, copy the information directly from the vehicle, not  from the repair order. ALL INFORMATION MUST BE PRINTED AND NEAT.

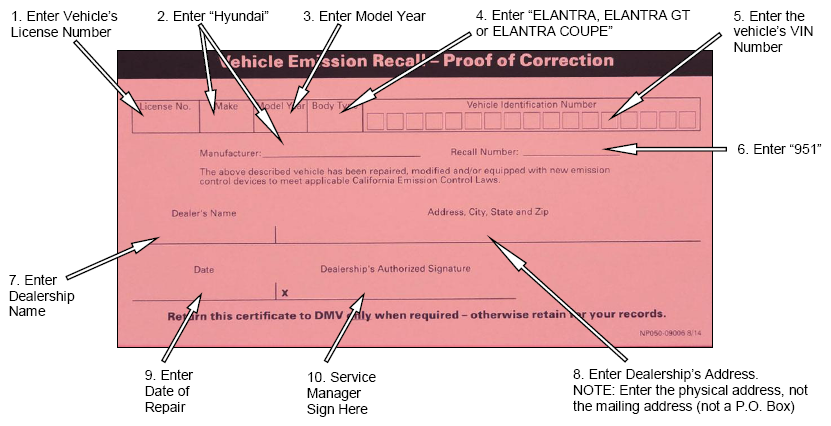

The copy of the card shown below indicates the areas to be filled in. Each area must  be filled in.

The completely filled out Vehicle Emission Recall - Proof of Correction card should be given to the owner of the vehicle upon completion of the Campaign.

G11787649

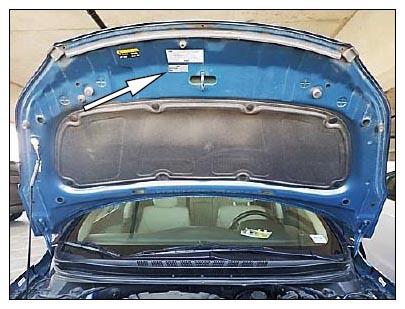

Fill in the information on the 00305-SC951 Campaign Sticker and apply onto the hood in the area below the Emission Label as shown.

Be sure to clean the mounting surface to ensure proper label adhesion.

The campaign procedure is complete.

G11787650
