Diagnostic Circuit Diagram

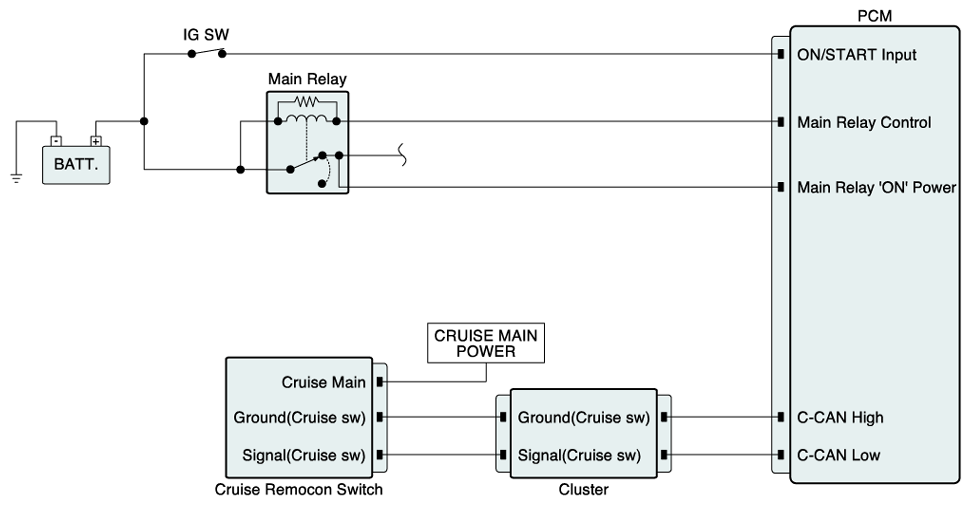

Fig 1: Cruise Remocon Switch - Diagnostic Circuit Diagram (1 Of 2)
G07272612Courtesy of HYUNDAI MOTOR CO.

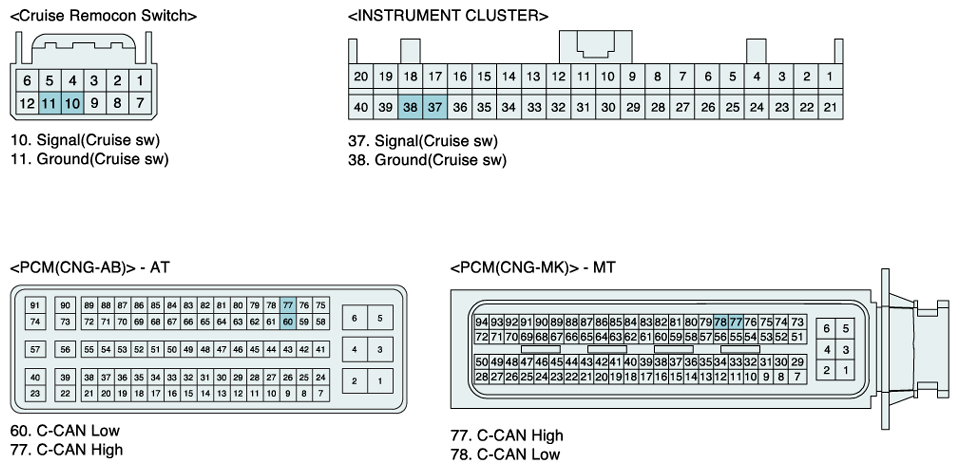

Fig 2: Cruise Remocon Switch - Diagnostic Circuit Diagram (2 Of 2)
G07272613Courtesy of HYUNDAI MOTOR CO.
