Ground Circuit Inspection

IG KEY 'OFF'.
Disconnect Fuel Level Sender 'A' harness connector.
Measure resistance between ground terminal of Fuel Level Sender 'A' harness connector and chassis ground.
Specification: Below 1Ω

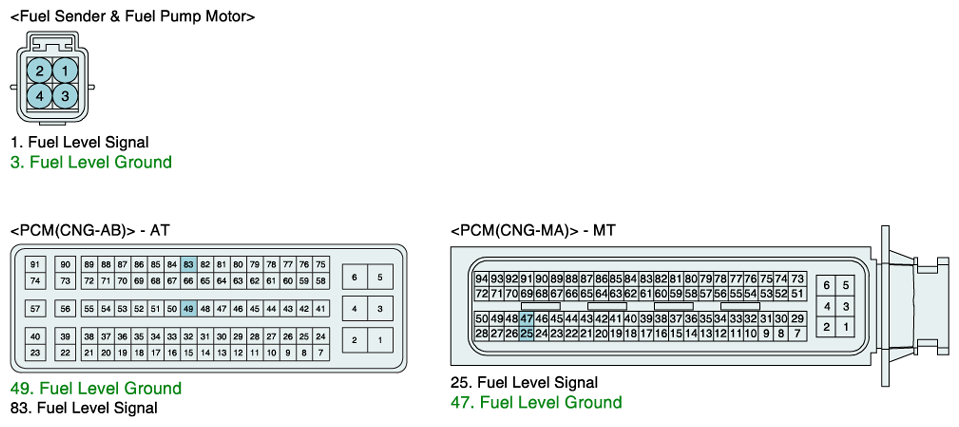

Fig 1: Measuring Resistance Between Ground Terminal Of Fuel Level Sender A Connector And Chassis Ground (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

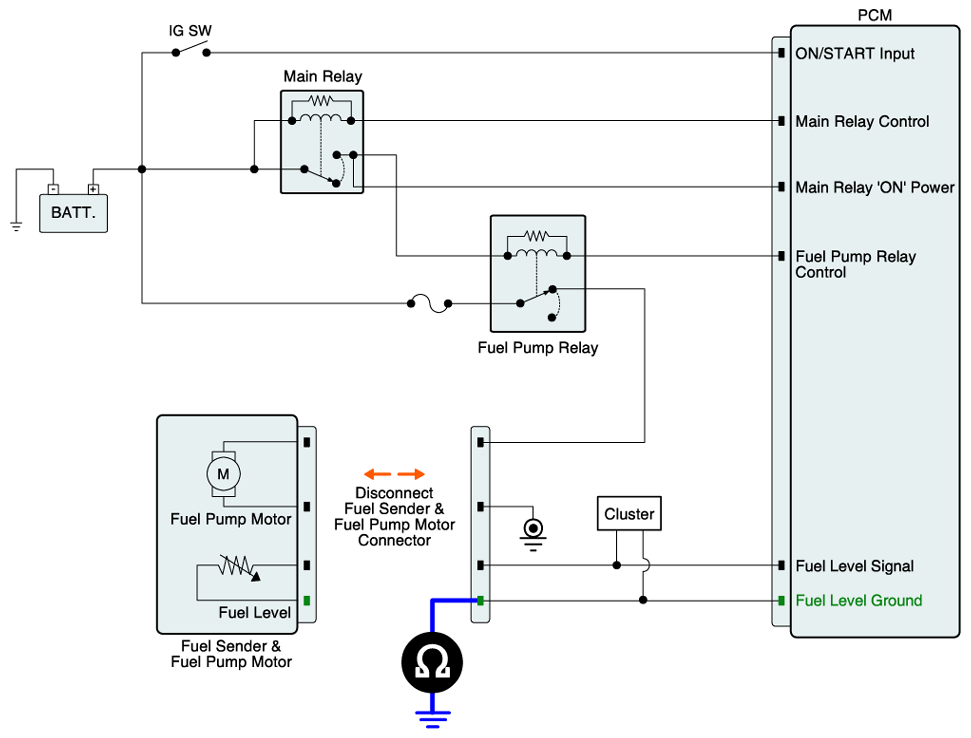

Fig 2: Measuring Resistance Between Ground Terminal Of Fuel Level Sender A Connector And Chassis Ground (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Is resistance within specification?
YES
- Go to next procedure.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
