Diagnostic Circuit Diagram

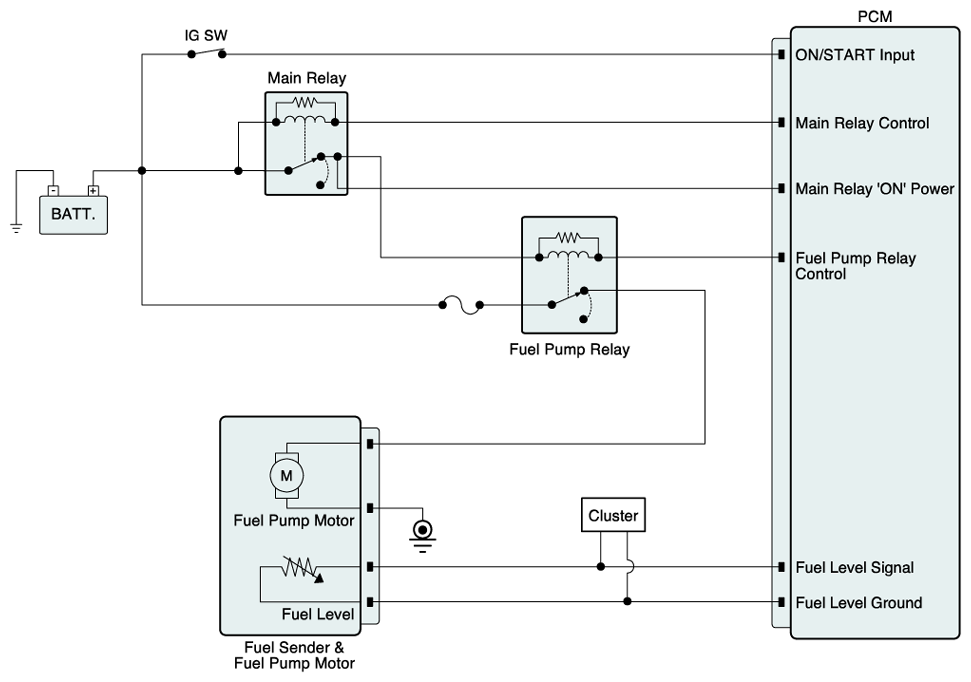

Fig 1: Fuel Level Sensor - Diagnostic Circuit Diagram (1 Of 2)
G07272565Courtesy of HYUNDAI MOTOR CO.

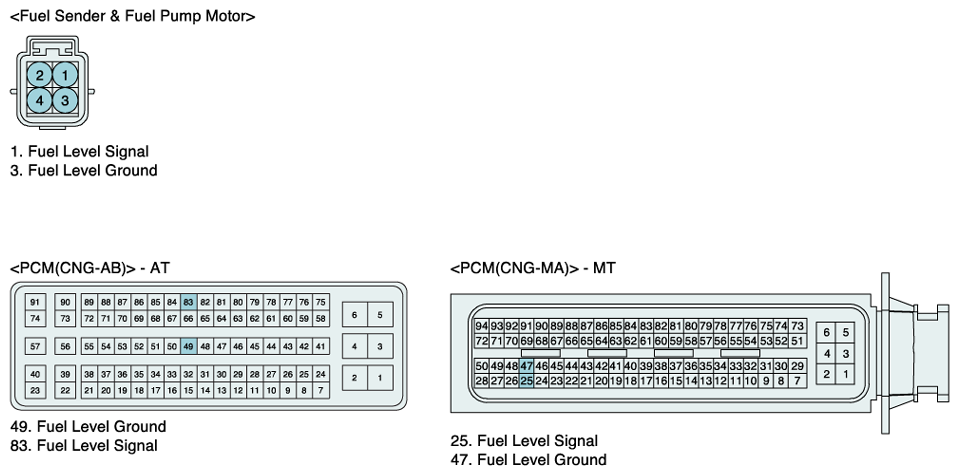

Fig 2: Fuel Level Sensor - Diagnostic Circuit Diagram (2 Of 2)
G07272566Courtesy of HYUNDAI MOTOR CO.
