Ground Circuit Inspection

IG KEY OFF.
Disconnect ETC connector and PCM connector.
Measure resistance between both ends of TPS ground line.
Specification: Below 1Ω.

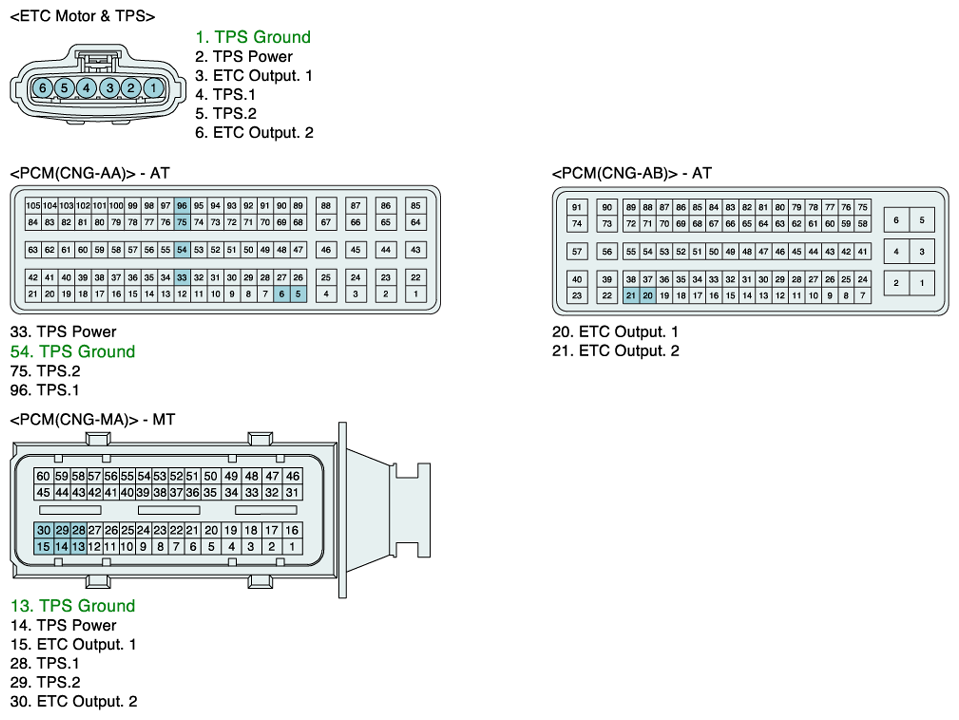

Fig 1: Measuring Resistance Between Both Ends Of TPS Ground Line (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

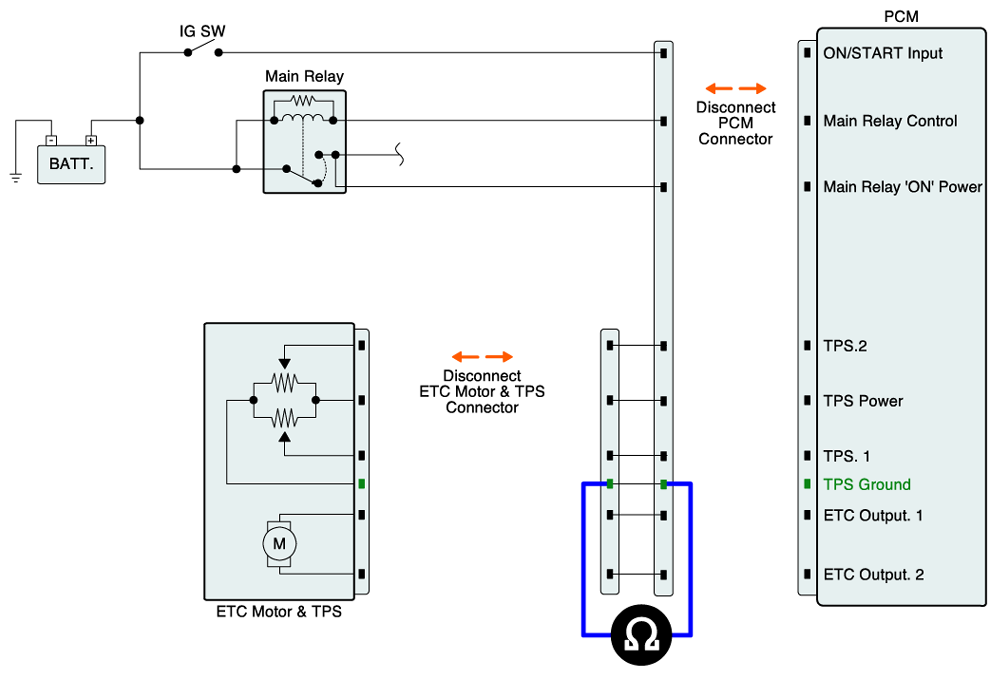

Fig 2: Measuring Resistance Between Both Ends Of TPS Ground Line (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Is resistance within specification?
YES
- Go to next procedure.
NO
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
