Signal Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect IAT sensor connector and PCM connector.
  3. Measure the resistance between signal terminal of IATS harness connector and chassis ground.

    Specification:  Infinite

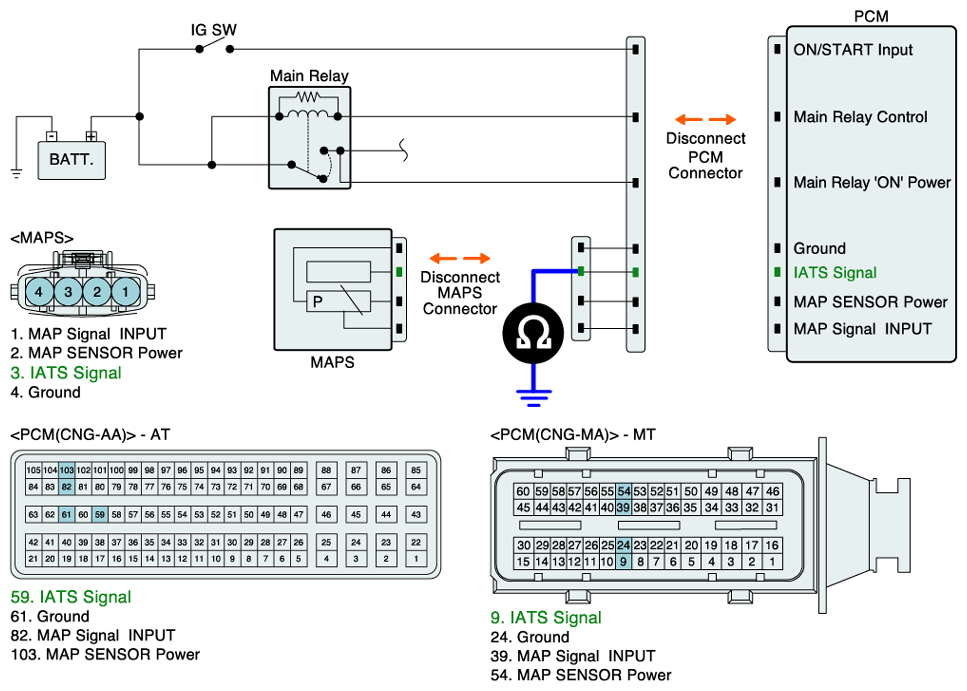

    Fig 1: Measuring Resistance Between Signal Terminal Of IATS Connector And Chassis Ground
    G07272214Courtesy of HYUNDAI MOTOR CO.
  4. Is resistance within the specification?

    YES

    Go to next step as below.

    NO

    Repair as necessary and go to "W/HARNESS INSPECTION " procedure.
