Signal Waveform&Data

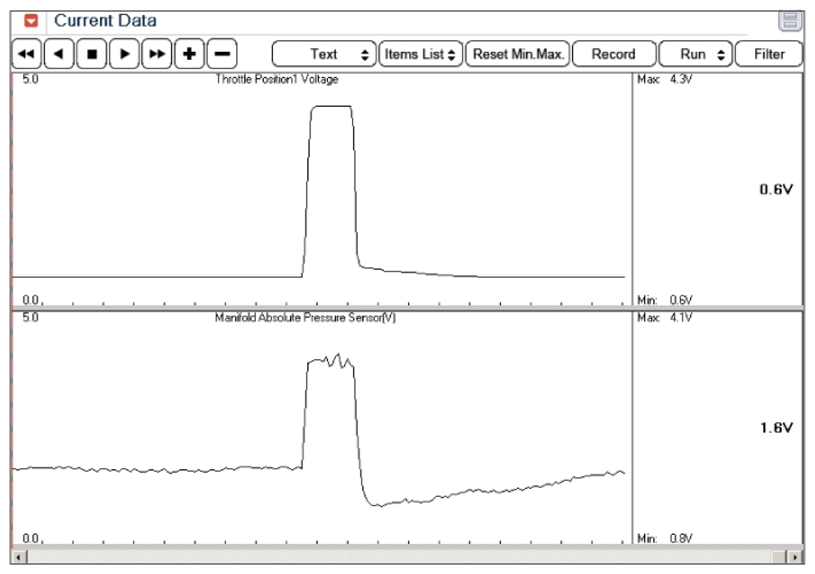

Fig 1: Screen Display - Signal Waveform

Courtesy of HYUNDAI MOTOR CO.

As often as possible, the MAPS signal should be compared with the TPS signal. Check whether the MAPS and TPS signals increase at the same time when accelerating. During acceleration, the MAPS output voltage increases; during deceleration, the MAPS output voltage decreases.
