Component Inspection

  1. Ignition "OFF".
  2. Measure resistance between power terminal and control terminal of the sensor connector. (Component side)

    Specification

    RESISTANCE SPECIFICATION

    Temp. (°C) Temp. (°F) Heater Resistance (Ω)
    18 ~ 20 64 ~ 82 9.0

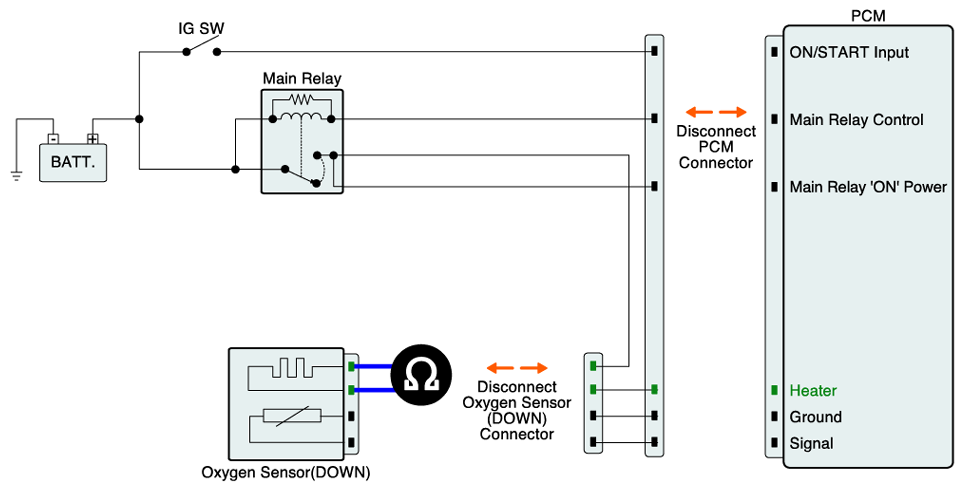

    Fig 1: Measuring Resistance Between Power Terminal And Control Terminal Of Sensor Connector (1 Of 2)
    G07272134Courtesy of HYUNDAI MOTOR CO.

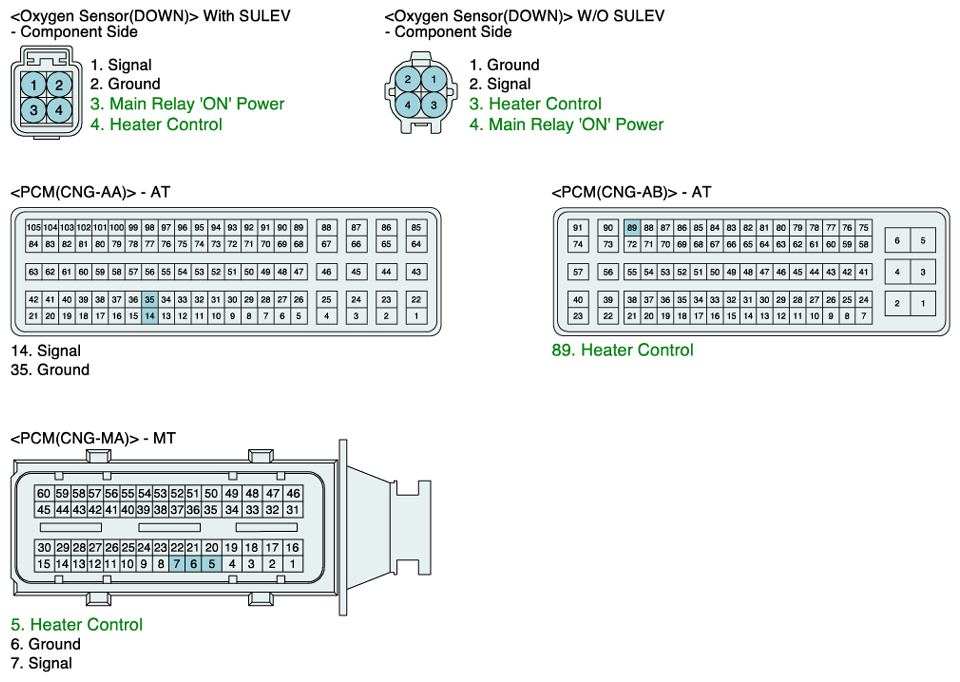

    Fig 2: Measuring Resistance Between Power Terminal And Control Terminal Of Sensor Connector (2 Of 2)
    G07272135Courtesy of HYUNDAI MOTOR CO.
  3. Is resistance within specification?

    YES

    Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    Check HO2S for contamination, deterioration, or damage. Substitute with a known-good HO2S and check for proper operation. If the problem is corrected, replace HO2S and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
